low energy waterproof durable bluetooth beacon for indoor navigation and smart parking

  • >=3 Pieces
    $12.00
Supplier Type:
Original manufacturer
Lead Time:
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 7 Negotiable
Samples:
$12.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Chipset:
BLE 5.0
Model Number:
i11
Application:
indoor lacation
Brand Name:
Minew
Place of Origin:
Guangdong China
Item:
i11
Color:
White
Battery type:
ER14505
Protocol:
IBeacon Eddystone
Size:
100*100*25mm
Frequency Range:
80meters
Battery lifetime:
5 Years Battery Life
Certification:
CE FCC
Water Proof:
IP68
Antenna:
50ohm
Supply Ability
Supply Ability:
30000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
gift box
Port
shenzhen / hongkong
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 7 To be negotiated
Product Description

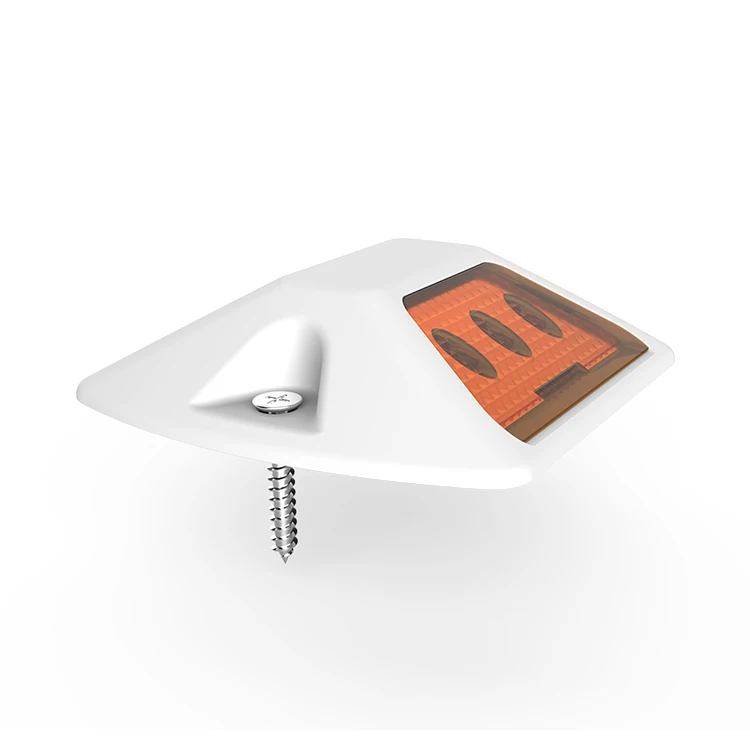

About I11 Road Stud Beacon

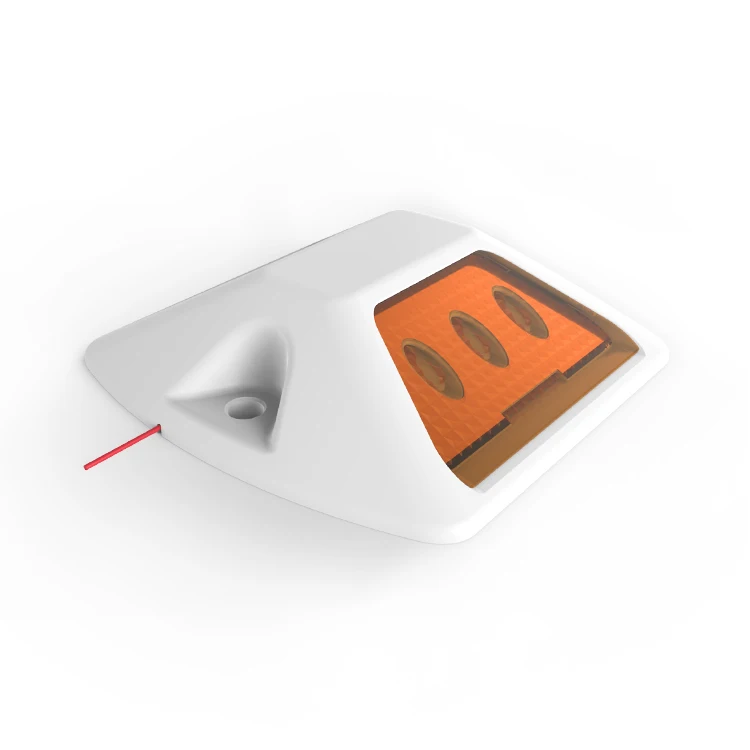

i11 is a new generation beacon for tough industrial environments. It is featured with tough housing that against strong waterproof IP68 grade , dustproof, shockproof and explosion-proof. ER14505 battery with large battery capacity supports 3years lifetime usage. It can be fixed on the floor or objects by screws for locating and tracking. It is very easy to start the beacon by cutting the external wire and can be deployed in both Indoor and outdoor environments such as large supermarkets, factories, parking lots etc.

About  I11 Road Stud Beacon
The i11 Road Stud Beacon is loaded with Bluetooth® 5.0 hardware platform and MiniBeacon Plus intelligence software that advertises standard iBeacon, Eddystone (UID, URL, TLM) simultaneously. It is able to configure the parameters via configuration app BeaconSET+ to specified parameters so that to meet various applications.

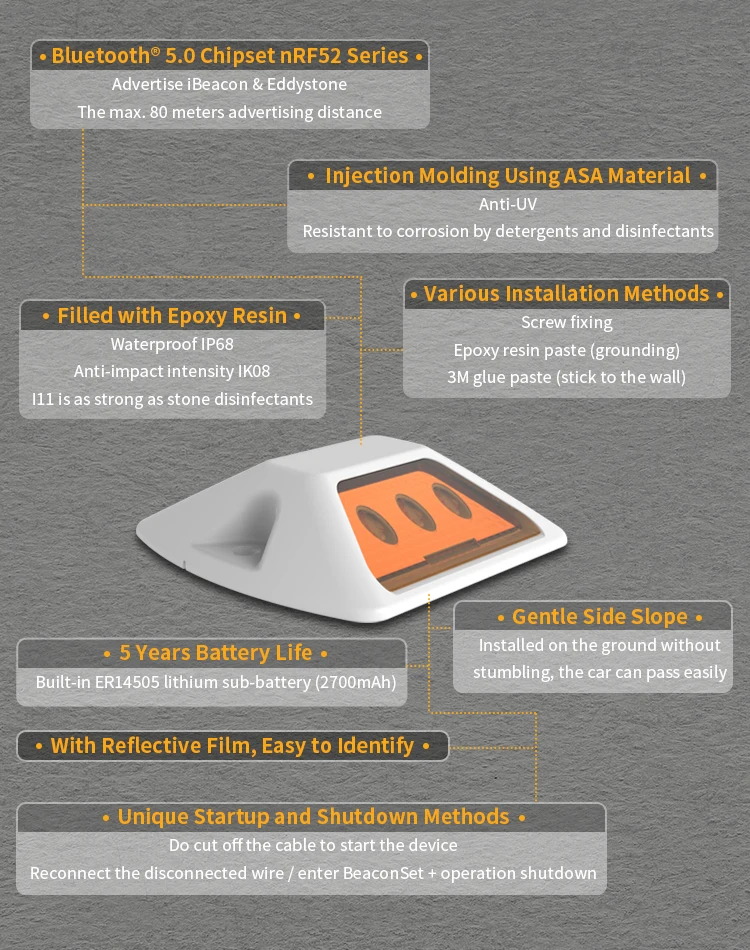

Features

-Advertise iBeacon & Eddystone simultaneously -Bluetooth® 5.0 chipset nRF52 series -3 years battery lifetime with default settings -IP68 waterproof, dustproof, shockproof and explosion-proof -The max. 80 meters advertising distance

Details Images
Item
Value
Remarks
Case Color
White
Other colors can be customized
Battery Model
2700mAh @ 3.6Volts
1pc ER14505 battery
Operation Voltage
1.8-3.9V
DC
Transmission Circuit
5.3mA (Max.)
Tested at 0dBm transmission power
Transmission Range
80 meters
Maximum @ open space
Transmission Power
-40dBm to +4dBm
Configurable
Broadcasting Interval
900ms
Default setting, configurable
Antenna
50ohm
On board / PCB Antenna

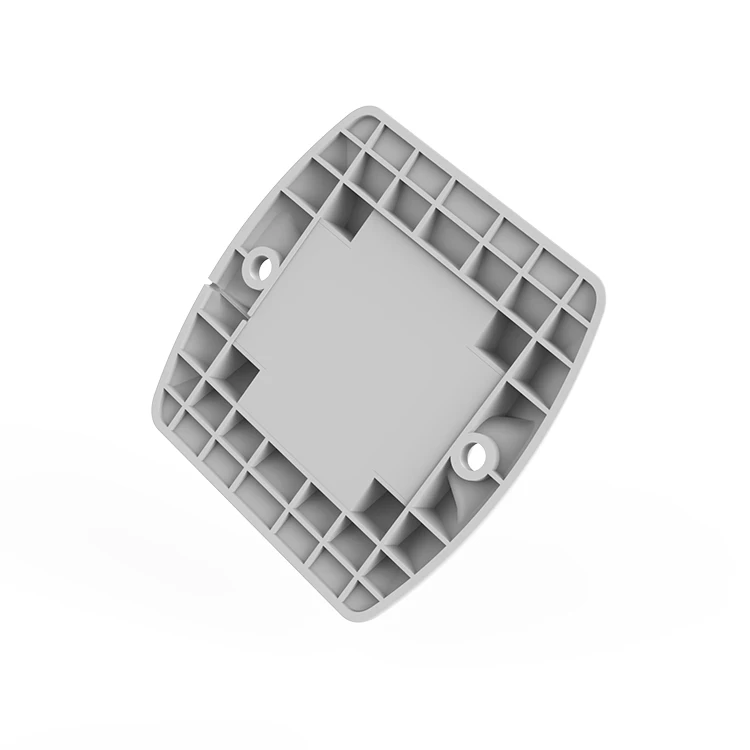

Accessory
Screws
2pcs screws and 2pcs plastic holders

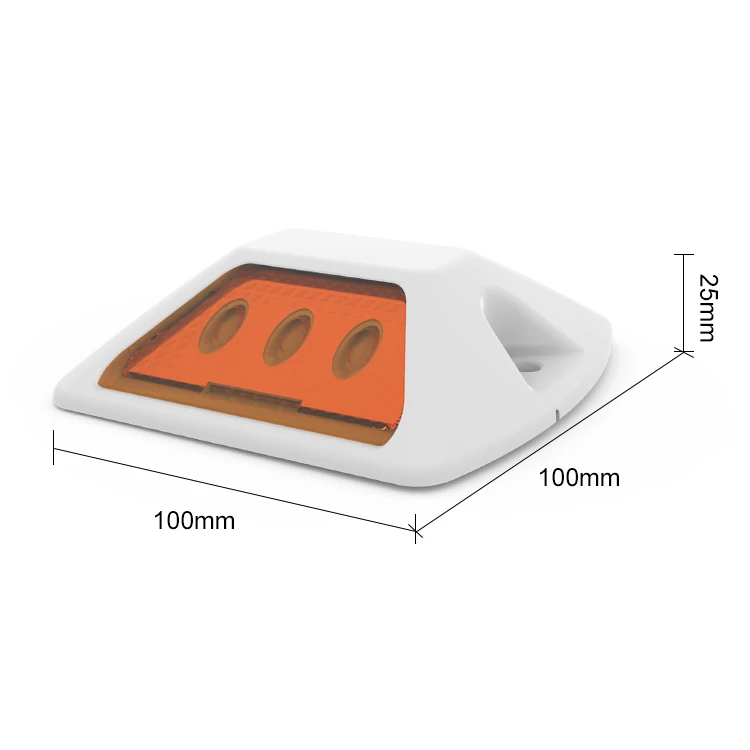

Size

100 x 100 x 25mm

Null
Net Weight
140.0g
With battery

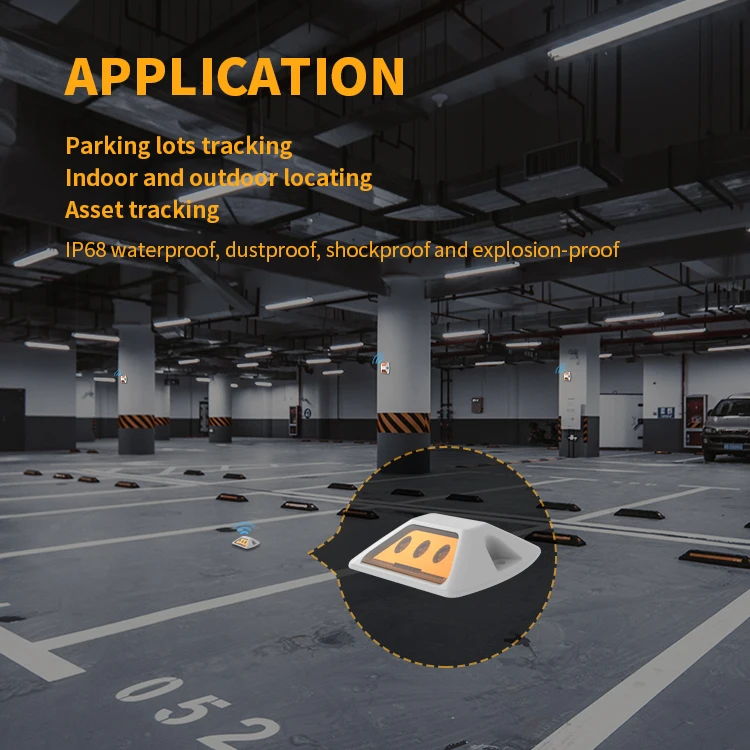

Product Usage
-Parking lots tracking
-Indoor and outdoor locating
-Asset tracking

Our Service

Customize service:

- Print your logo on the top of Beacon;
- Programmer your firmware into iBeacon Module;
- Pre-configure the value of parameter before the shippment;
- PCB can be customized if needed;
- Package can be customized if required;
- Prototyping the casing and mold tool design and injection service.

Related Products
Packing & Delivery
Details
Box
Carton
Quantity (C7)
6pcs
60pcs
Net Weight
0.84Kg
8.4Kg
Gross Weight
0.9Kg
9.Kg

Delivery

According to our customers requirements, we are willing to handle shipment for our customers, and the shipment fee is needed in this case.Fast Express like DHL,UPS, TNT, FedEx are all available here. Or if our customers have their own Express account, freight forwarder in China,we are happy to contact their Express people or freight forwarder to pick up products from our factory.

Our Company

Founded in 2007,Minew has been engaged in IoT (Internet of Things) field for years and is keeping updated to the market demand all along.We are an ISO9001:2008 certified manufacturer focusing on RF / Wireless products such as 2.4GHz BLE 4.0 related products.We focus on designing and manufacturing many different high quality and low cost iBeacons hardware , offering one-stop services include:


1. Schematic design;
2. Mold design;
3. PCB layout;
4. Firmware design;
5. Production and assembling.
Warmly welcome the OEM and ODM projects.

Exhibition Show

FAQ

Do you provide the technical support to the developers?
Re: SURE. The following technical data and documents will be provided to developers.
1. SDK 2. Demo APP 3. Configuration APP 4. Instructions

Can I change the password?
Re: Yes, you can use configuration APP to change password by yourself.

Do you have SDK or the source code?
Re: Yes, we will provide you after sample was arrived.

Does MiniBeacon comply with iBeacon standard?
Re: Yes,MiniBeacon has been licensed by ibeacon stamdard program with contact No.iBC-14-00582.
