BLE bluetooth low energy wearable ibeacon NFC bracelet personal locating beacon

FOB Reference Price:Get Latest Price
$1.00 - $12.00 / Piece | 3 Piece/Pieces (Min. Order)
Supplier Type:
Original manufacturer ODM
Lead Time:
Quantity(Pieces) 1 - 10 11 - 100 >100
Est. Time(days) 7 15 Negotiable
Customization:
Customized logo (Min. Order: 200 Pieces)
Samples:
$12.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Chipset:
nRF52
Model Number:
B7
Application:
personal locating
Brand Name:
Minew
Place of Origin:
Guangdong, China
Color:
White
Battery:
CR2032
Battery lifetime:
1 year
Transmission Range:
50 Meters
Size:
35.9*11mm
Weight:
12.0g
Certification:
CE FCC RoHS
Protocol:
IBeacon Eddystone
Antenna:
50ohm
Warranty:
12 Months
Supply Ability
Supply Ability:
30000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
gift package
Port
shenzhen / hongkong
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 10 11 - 100 >100
Est. Time(days) 7 15 To be negotiated
Product Description

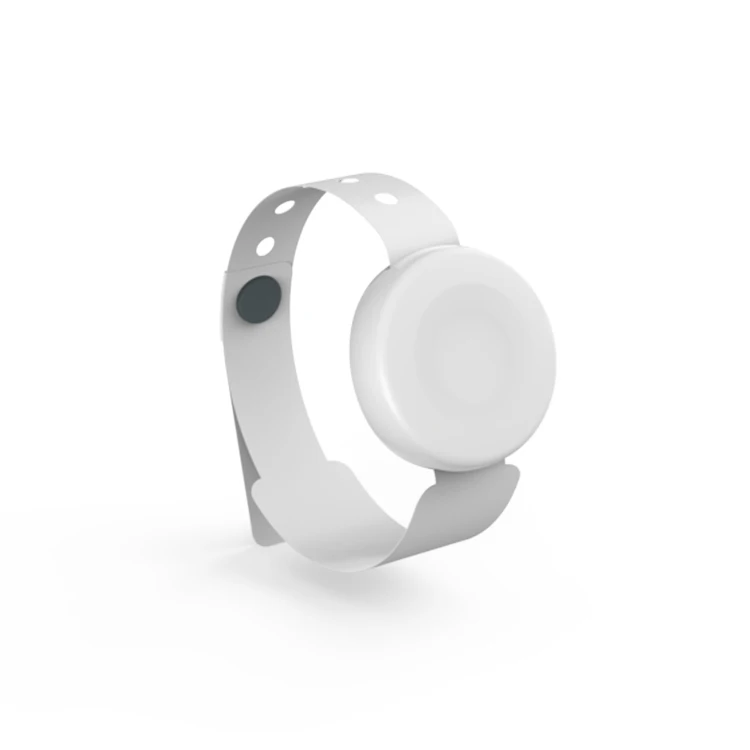

The wristband beacon B7 is a new generation beacon with push button for hospital patients, personnel positioning and emergency call. The housing case is injection-molded with medical-grade materials. And thread-fixed structure makes it waterproof grade up to IP66.

The wristband can be equipped with an NTAG213 NFC tag. The wristband beacon is loaded with Bluetooth® 5.0 hardware platform based on nrf52 chip. It advertises iBeacon, Eddystone (UID, URL, TLM) and Accelerometer sensor simultaneously.
Features and highlights:
- Advertise iBeacon & Eddystone
- 3-axis sensor data(optional)
- Bluetooth® 5.0 chipset
- 1pc CR2032 replaceable coin battery
- A push-button on the beacon
- IP66 waterproof grade, dust-proof,shock-proof
- Detachable wristband
- Wristband can be built-in NTAG213 NFC tag
Product Parameters
Item
Value
Remarks
Battery Mode
1 x CR2032
1pc CR2032 coin battery, 220mAh, 3.0V
Operation Voltage
1.8-3.9V
DC
Transmission Circuit
5.3mA (Max.)
Tested at 0dBm transmission power
Transmission Range
50meters
 Maximum
Waterproof
IP66
Null
Antenna
50ohm
On board / PCB Antenna
Application
Patients Management
- by pushing the button in B7, the patients can send the signal for help,which would be received by doctors and nurses , thus , patients can get the help promptly

- doctors and nurses can monitor patients' activities in real-time
Personnel Tracking
For the elderly, lone workers and students in order to ensure their safety.
Configuration app
BeaconSET+ (Available on Android and IOS), which can be downloaded in Apple Store & Google Play
Packing&Shipping
Company Introduction
Founded in 2007, Minew has been focusing on IoT field for more than a decade and keeping up with customer demands all the time.By providing smart devices and IoT solutions, we serve to optimize people’s lives, works and businesses to make life easier.
We have already served clients from more than 100 countries and regions and recorded 20 million sales volume so far. Today, we have collaborated with a lot of top-class corporations including Alibaba, Google, Here, Huawei, ect.
Our service include:
1. Provide IOT hardware with built-in firmware, like Ibeacon, eddystone, sensor, gateway.
2. OEM/ODM project: from PoC to mass production
3.Manufacture: ISO9001, ISO14001 & OHSAS18001 , complete quality management and control,.
4. Daily capacity is 30,000 units. All to guarantee short production lead time and high quality
5. Service: pre-configurate before shipment, SDK provided, ready coniguration APP, free laser printing logo


FAQ
Do you provide the technical support to the developers?
Re: SURE. The following technical data and documents will be provided to developers.
1. SDK 2. API 3. Demo APP 4. Configuration APP 5. Instructions

Can I change the password?
Re: Yes, you can use configuration APP to change password by yourself.

Do you have SDK or the source code?
Re: Yes, we will provide you after sample was arrived.

I want to buy sample to test firstly, how should I move on?
Re: Yes, we can supply sample with MOQ 3 pcs for testing and evaluating, we can make an online order in Alibaba or offline order through sample profoma invoice issued by Minew.
