Bluetooth push button beacon, ble ibeacon nrf51822

FOB Reference Price:Get Latest Price
$1.00 - $6.90 / Pieces | 3 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
D15N beacon ble
Brand Name:
Minew
Place of Origin:
Guangdong, China
Transmission Range:
90 meters
Battery type:
CR2025
Case color:
White
Operation Voltage:
1.8-3.6V
Transmission Circuit:
10.5mA (Max.)
Antenna:
50ohm
Size:
Diameter 35 x 8.2 mm
Net Weight:
7.0g
Product Certification Verified
FCC Certified.
Supply Ability
Supply Ability:
20000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
2017 hot new products beacons ble
16pcs/box;
160pcs/carton
Port
Shenzhen
Product Description

The UFO beacon ble D15N

- This is a very popular and modern iBeacon with ARM core chipset nRF51822 and leverage BLE 4.0 technology; it has a nice design case, accurate hardware and robust firmware.

Minew Beacons broadcast 2.4GHz radio signals at regular and adjustable intervals. MiniBeacon can be heard and interpreted by iOS and Android BLE-enabled devices that are equipped with many mobile apps.

FEATURES

- Programmed MiniBeacon standard firmware
- Included 1pc CR2025 coin battery
- The max. 90 meters advertising distance
- Ultra-low power consumption chipset nRF51822 with ARM core
- Easy to print the logo on the center of top case;

Configure App: BeaconSET

Bluetooth Smart Beacon Certification:

Related products

Click the photos for more details.

i4 MiniBeacon                     i8 Diamond Beacon            i9 beacon sticker           i7 accelerometer iBeacon

Technical Parameter
Item
Value
Remarks
Case Color
White
Other colors can be customized
Battery Model
CR2025
1pc CR2025 coin battery, 150mAh, 3.0V
Operation Voltage
1.8-3.6V
DC
Transmission Circuit
10.5mA (Max.)
Tested at 0dBm transmission power
Transmission range
90 meters
Maximum
Antenna
50ohm
On board / PCB Antenna
Net Weight
7.0g
With battery but without package
Size
Diameter 35 x 8.2 mm
Null

Application

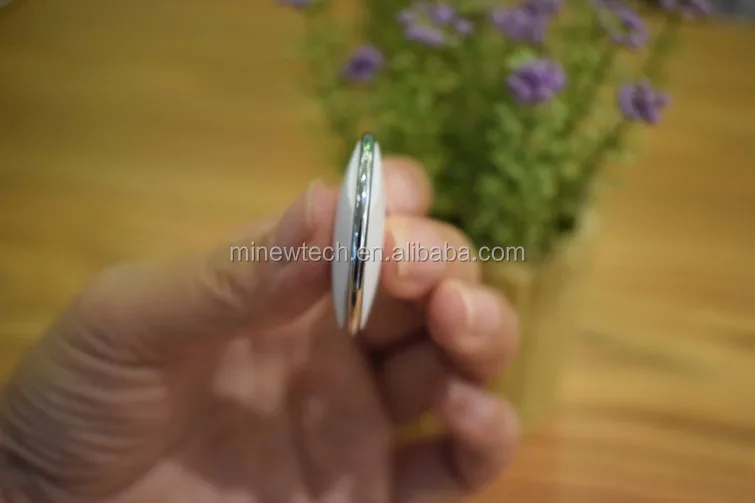

Detailed Images

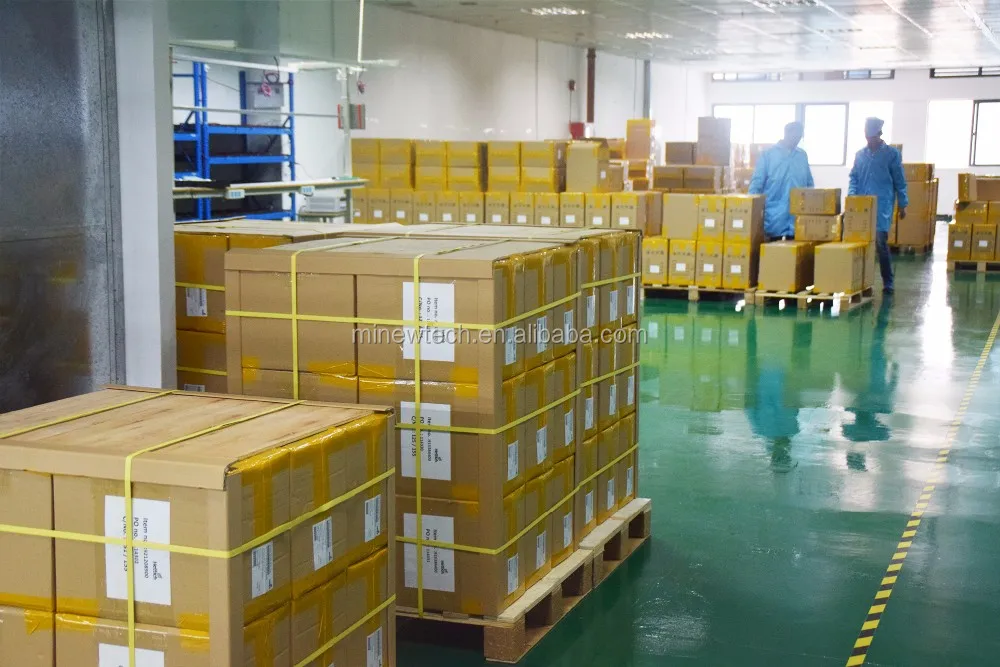

Packing & Delivery

Delivery
According to our customers requirements, we are willing to handle shipment for our customers, and the shipment fee is needed in this case.

Fast Express are all available here.
Or if our customers have their own Express account, freight forwarder in China, we are happy to contact their Express people or freight forwarder to pick up products from our factory..

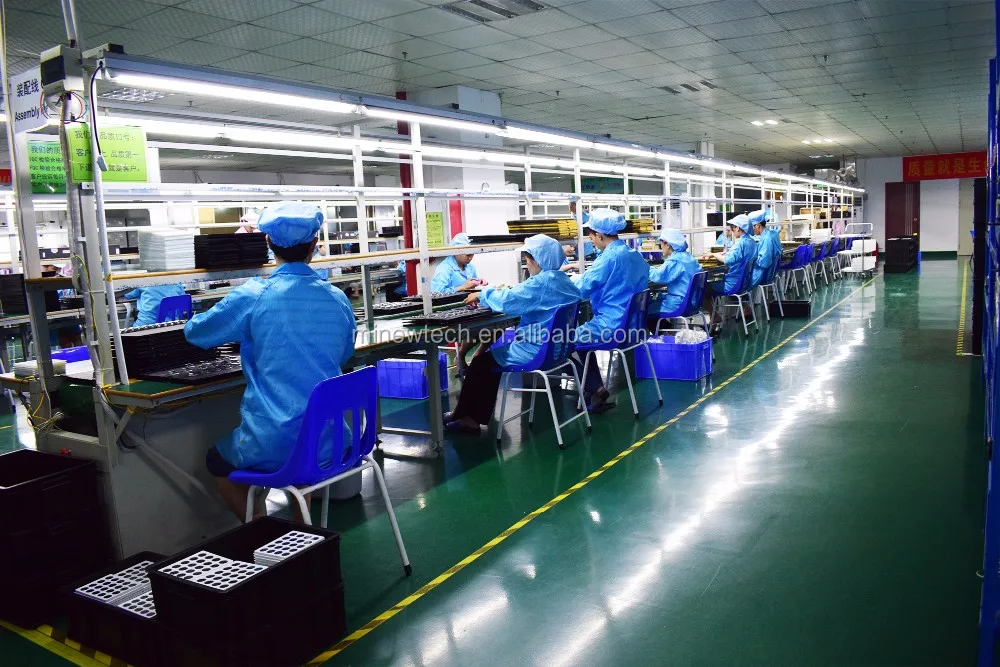

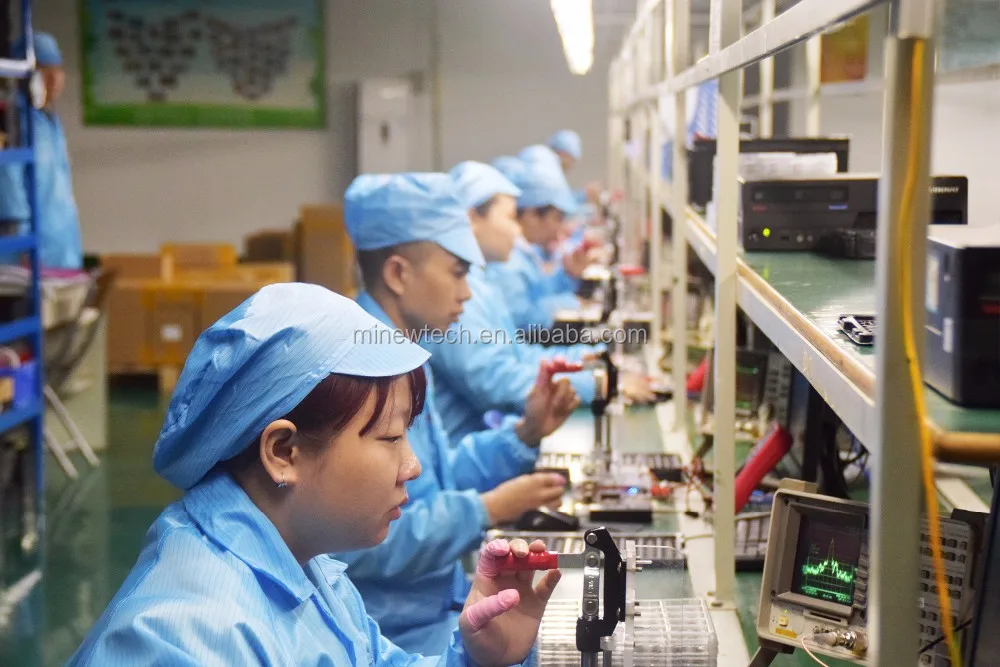

Our Company

Founded in 2007, Minew has been engaged in IoT (Internet of Things) field for years and is keeping updated to the market demand all along.

We are an ISO9001:2008 certified manufacturer focusing on RF / Wireless products such as 2.4GHz BLE 4.0 related products.
We focus on designing and manufacturing many different high quality and low cost iBeacons hardware , offering one-stop services include:
1. Schematic design;
2. Mold design;
3. PCB layout;
4. Firmware design;
5. Production and assembling.
Warmly welcome the OEM and ODM projects.

Our Service

- Print your logo on the top of MiniBeacon;
- Programmer your firmware into iBeacon Module;
- Pre-configure the value of parameter before the shippment;
- PCB can be customized if needed;
- Package can be customized if required;
- Prototyping the casing and mold tool design and injection service.

FAQ

Do you provide the technical support to the developers?
Re: SURE. The following technical data and documents will be provided to developers.
1. SDK 2. API 3. Demo APP 4. Configuration APP 5. Instructions

Can I change the password?
Re: Yes, you can use configuration APP to change password by yourself.

Do you have SDK or the source code?
Re: Yes, we will provide you after sample was arrived.

Does MiniBeacon comply with iBeacon standard?
Re: Yes,MiniBeacon has been licensed by ibeacon stamdard program with contact No.iBC-14-00582.
