Long range mini USB bluetooth beacon

FOB Reference Price:Get Latest Price
$1.00 - $12.00 / Pieces | 3 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
U1
Brand Name:
Minew
Place of Origin:
Guangdong, China
Chipset:
nRF51822
Transmission Range:
100 meters. (MAX)
Battery Model:
Powered by usb slot
Certification:
CE FCC RoHS
Bluetooth:
Bluetooth4.0
System:
Ios 7.0+/android4.3+
Weight:
3.0 g
operation voltage:
5.0v
Size:
28.5x16.0x7.5 mm
Case Color:
Black
Supply Ability
Supply Ability:
20000 Piece/Pieces per Day

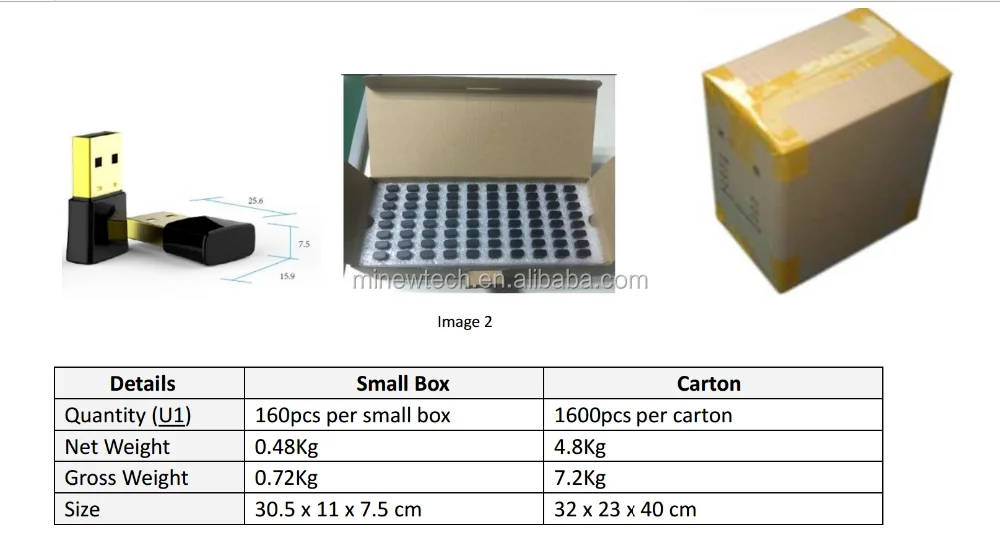

Packaging & Delivery
Packaging Details
U1 mini USB bluetooth beacon:
Standard Package
30.5 x 11 x 7.5 cm, 160 pcs/box
32 x 23 x 40 cm, 1600 pcs / carton
Port
Shenzhen
Product Description


--- Long range mini USB bluetooth beacon of MFI approval ---

Basic Introduction:

1. The USB type iBeacon model U1 is integrated the UART communication function based on the USB port.

2. It supports the simple command format / protocol, so the standard iBeacon parameters can be configured by this USB port by external controller.
3. U1 is widely used for the advertisement device such as outdoor TV, mobile TV and etc.

The Features and Advantages:

1. USB type iBeacon
2. Powered by USB slot;
3. Integrated the UART communication function
4. Max. 100 meters range
5. Easy to print the logo on the top case;


Technical Parameters:

Item
Value
Remarks
Case Color
black
Other colors can be customized
Operation Voltage
5.0V
DC
Transmission Circuit
10.5mA (Max.)
Tested at 0dBm transmission power
Transmission Range
100 meters
Maximum (+4dbm)
Baud Rate
9600bps
8N1
Antenna
50ohm
On board / PCB Antenna
Net Weight
3.0g
Null
Size
28.5x16.0x7.5 mm
Null

Application:

Config App:
Set some parameters - Download the configuration app " BeaconSET" on ios and android phones.

Packing & Delivery

Packaging:

Delivery:

1.Delivery will be arranged by DHL/UPS/Fedex/TNT/EMS,normally it will take 3-7 working days.
2.We can also help you ship the goods by air line,then you need to go to Air port totake it ,it takes about 2-7 days to    arrive.
3.If you have your own express account, we can help call them to pick up the goods in our company.

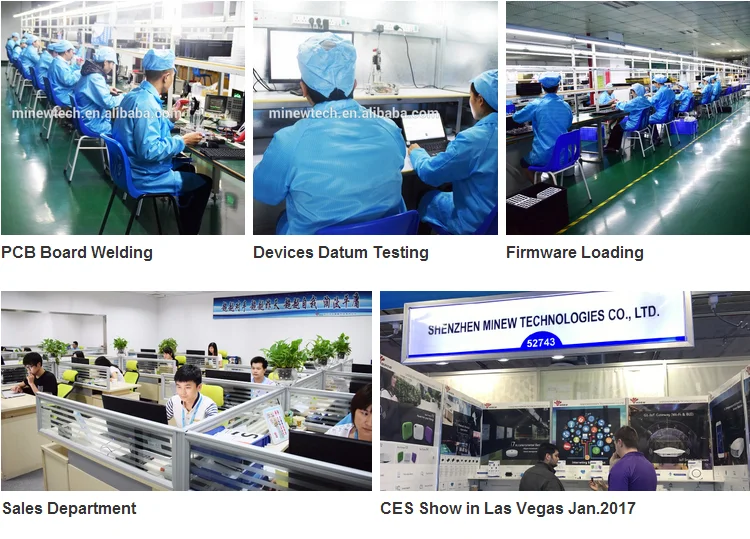

Company and Factory

Minew was founded in 2007, engaging in IOT (Internet Of Things) field for years and keeping updated to the market     demand all along.
Via providing smart devices and IoT solutions, we serve to optimize customers'lives ,works and businesses, improving   their efficiency and convenience.
We are an ISO9001:2008 certified manufacturer focusing on RF / Wireless products such as 2.4GHz BLE 4.0 related   products.
We focus on designed and manufactured many different high quality and low cost iBeacons hardware and one-stop     services.
1. Schematic design;
2. Mold design;
3. PCB layout;
4. Firmware design;
5. roduction and assembly.
Warmly welcome the OEM and ODM projects.
With these years expansion of our company, our customers grow up bigger and bigger. Our partners included Google,
Ericsson, ARM, ZEBRA, here.com etc.

Certifications
Our Service


1. Print your LOGO;
2. Programmer your firmware;
3. Pre-configure the value of parameter before the shippment;
4. PCB can be customized;
5. Package can be customized;
6. Prototyping the casing and mold tool design and injection service.

FAQ

1. Do you provide the technical support to the developers?
--Re: SURE. The following technical data and documents will be provided to developers.
  1. SDK 2. API 3. Demo APP 4. Configuration APP 5. Instructions


2. Can I change the password?
--Re: Yes, you can use configuration APP to change password by yourself.

3. Do you have SDK or the source code?
--Re: Yes, we will provide you after sample was arrived.

4. Does MiniBeacon comply with iBeacon standard?
--Re: Yes,MiniBeacon has been licensed by ibeacon stamdard program with contact No.iBC-14-00582.
