Mini Bluetooth 5.0 ibeacon eddystone wearable keychain beacon

FOB Reference Price:Get Latest Price
$1.00 - $6.90 / Pieces | 3 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
D15N
Brand Name:
Minew
Place of Origin:
Guangdong, China
Product name:
D15N mini beacon
Chipset:
Nordic Nrf51822
Battery Lifetime:
5months with 1*CR2025
Working Range:
90 meters
Application:
IOS7.0+,Andriod BLE 4.0+
Certification:
CE FCC RoHS
Bluetooth:
Ble4.0
Service:
Support OEM
Net Weight:
7.0g
Size:
35 x 8.2 mm
Product Certification Verified
CE Certified.
FCC Certified.
Supply Ability
Supply Ability:
20000 Piece/Pieces per Day UFO round shape key chain size wireless ble tracking beacon
Packaging & Delivery
Packaging Details
UFO round shape key chain size wireless ble tracking beacon
1pc/gift box
16pcs/box;
160pcs/carton
Port
Shenzhen
Video Description
Product Description

 D15N Mini Bluetooth 5.0 ibeacon eddystone wearable keychain beacon


- Support both ibeacon and eddystone

- With 6 slots, 1 device could broadcast 6 data simultaneously

- Programmed MiniBeacon standard firmware
- Included 1pc CR2025 coin battery
- The max. 90 meters advertising distance
- Ultra-low power consumption chipset nRF52832 with ARM core
- Easy to print the logo on the center of top case;

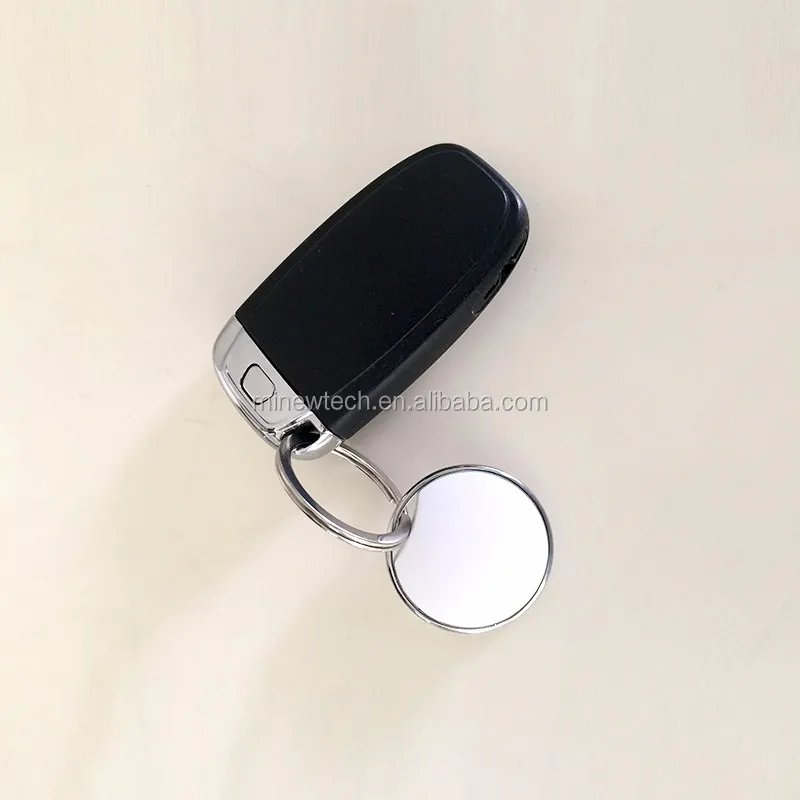

wearable mini beacon proximity marketing / indoor location


The UFO MiniBeacon D15N is a very popular and modern iBeacon with ARM core chipset nRF52832 and leverage BLE 5.0 technology; it has a nice design case, accurate hardware and robust firmware.

It is designed for the commercial advertising and indoor location-based service.

MiniBeacon can be heard and interpreted by iOS and Android BLE-enabled devices that are equipped with many mobile apps.


Product Outline:

Technical Parameters:

Item
Value
Remarks
Case Color
white
Other colors can be customized
Battery Model
1 x CR2025
1pc CR2025 coin battery, 85mAh, 3.0V
Operation Voltage
1.8-3.6V
DC
Transmission Circuit
10.5mA (Max.)
Tested at 0dBm transmission power
Transmission Range
90 meters
Maximum
Antenna
50ohm
On board / PCB Antenna
Accessories
Null
Null
Size
 Ø35 x 8.2 mm
Null
Net Weight
7.0g
With battery but without package

Application:

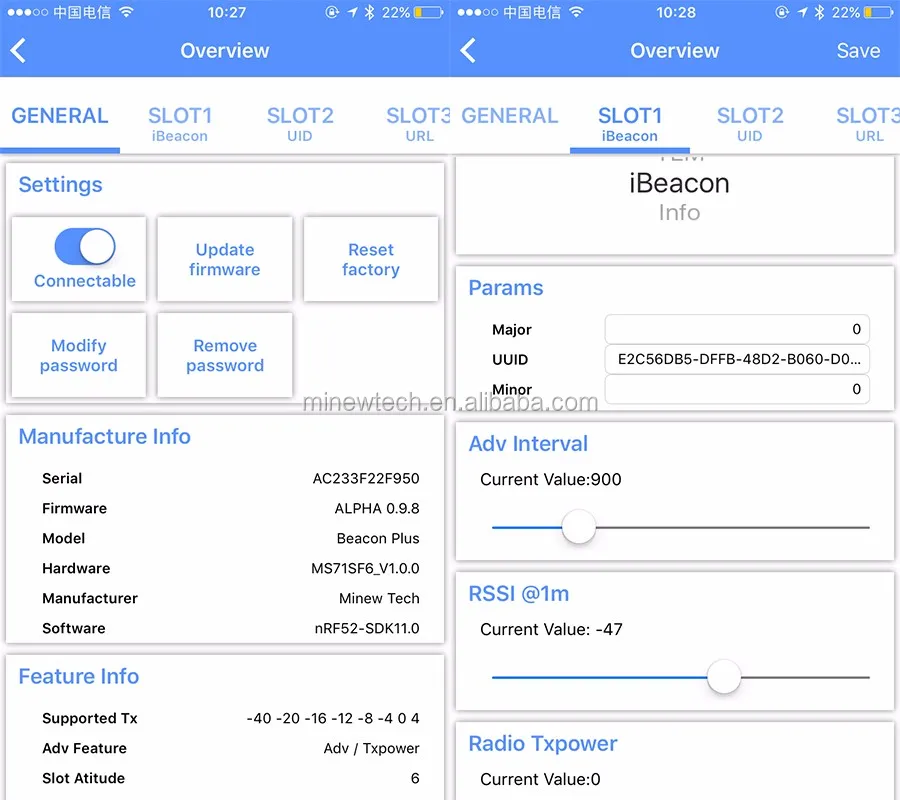

App Setting:


Set some parameters - Download the configuration app " Beaconset +" on ios and android phones.

Packing & Delivery

Packing:

Delivery:


1.Delivery will be arranged by DHL/UPS/Fedex/TNT/EMS,normally it will take 3-7 working days.
2.We can also help you ship the goods by air line,then you need to go to Air port totake it ,it takes about 2-7 days to arrive.
3.If you have your own express account, we can help call them to pick up the goods in our company.

Our Company

Overview:

Minew was founded in 2007, engaging in IOT (Internet Of Things) field for years and keeping updated to the market demand all along.
Via providing smart devices and IoT solutions, we serve to optimize customers'lives ,works and businesses, improving their efficiency and convenience. This is achieved by connecting our products to cusotomers’ smart ends (usually smartphones),in wi-fi covered space, with bluetooth functions on and products attached to target objects. Thus people could posite, find,track,receive messages,check status and even control target objects.
We are an ISO9001:2008 certified manufacturer focusing on RF / Wireless products such as 2.4GHz BLE 4.0 related products.
We only focus on designed and manufactured many different high quality and low cost iBeacons hardware and one-stop services.

Our Advantages:

1. we have our own hardware,mechanical, firmware design team , iOS&Andorid application development and Cloud platform development.
For OEM project, we have owned rich experience for the past years and can support related technical support and keep you updated the latest technology.
2. We have own SPC production control system, all the product are 100% test and 100% inpection before delivery
3. We have own factory and plenty of production line, the flexibility production capacity is 20K per day , the fast delivery time is assured.
4. Our strategic partners include Google, ARM,Nordic and some other big company who focus on IOT
5. Our R&D engineers are professional in software and hardware developing, including cloud and data management, mobile internet development, embedded software techniques, RFID and product structure designing.

Certifications
Our Service

1. Print your LOGO;
2. Programmer your firmware;
3. Pre-configure the value of parameter before the shippment;
4. PCB can be customized;
5. Package can be customized;
6. Prototyping the casing and mold tool design and injection service.

FAQ

1. Do you provide the technical support to the developers?
--Re: SURE. The following technical data and documents will be provided to developers.
1. SDK 2. API 3. Demo APP 4. Configuration APP 5. Instructions

2. Can I change the password?
--Re: Yes, you can use configuration APP to change password by yourself.

3. Do you have SDK or the source code?
--Re: Yes, we will provide you after sample was arrived.

4. Does MiniBeacon comply with iBeacon standard?

Re: Yes, Mini Beacon has been licensed by iBeacon standard program with contact No.iBC-14-00582.
