WiFi Gateway Bridge Long Range BLE 5.0 Wifi and Bluetooth IoT Gateway

FOB Reference Price:Get Latest Price
$1.00 - $60.00 / Pieces | 3 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
G1
Brand Name:
Minew
Place of Origin:
Guangdong, China
Name:
WiFi Gateway Bridge Long Range BLE 5.0 Wifi and Bluetooth IoT Gateway
Network Mode:
Router/Repeater/3g
Features:
WiFi/Bluetooth/Wireless Devices
Product Size:
23*16*5cm
Power Supply:
5V 1A DC adaptor/POE
Cover Range:
300 m
Port:
RJ45/USB/TF Card
Net Protocal:
MQTT/HTTP/TCP
Light strip:
Indicator
Upgrade:
USB/OTA
Product Certification Verified
CE Certified.
FCC Certified.
Supply Ability
Supply Ability:
50000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Packaging Details:
Standard Package Box: 23*16*5 cm, 1 pc per package box.
Standard iBeacon Package Carton:32 x 23.5 x 40 cm, 12pcs per outside carton.
Port
Shenzhen
Video Description
Product Description

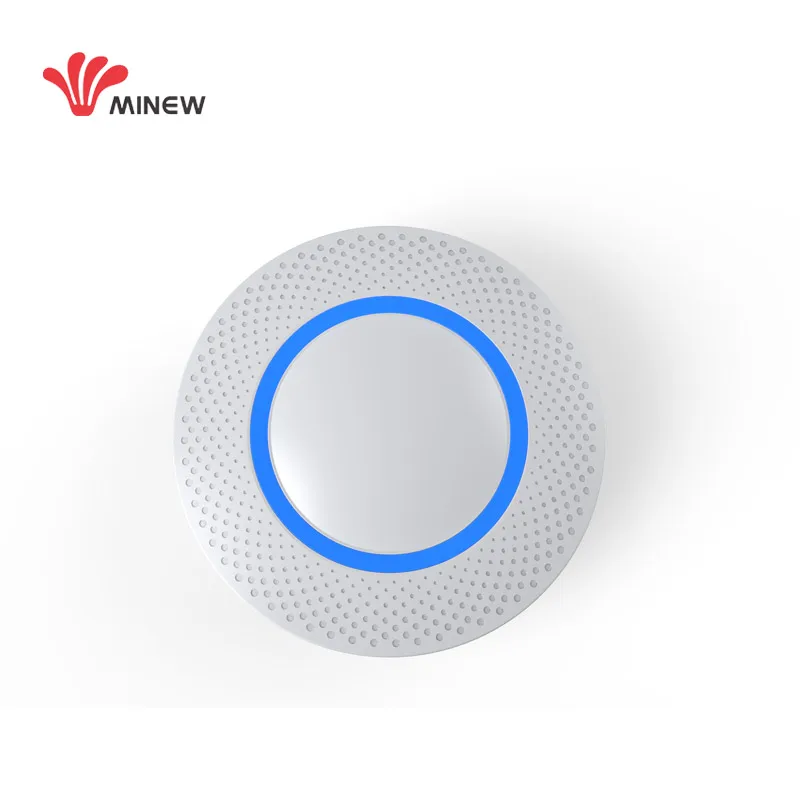

WiFi Gateway Bridge Long Range BLE 5.0 Wifi and Bluetooth IoT Gateway

G1 is WiFi/Bluetooth Gateway used to manage the wireless BLE devices, like beacons. Cover the range to 300m and with the power supply by DC adaptor or POE.
You could set the gateway via AP mode or a simple Web UI

BLE:
    - Bluetooth 5.0 hardware nRF52832
    - With a power amplifier
    - With 3dBi flexible FPC antenna
    - 300 meters range in open space
    - Rx sensitivity -108dBm
    - Bi-directional (reads data / sends command)

WiFi:
     - Up to 150 Mbps PHY data rate
     - With 3dBi flexible FPC antenna
     - 100 meters range in open space
     - 1T1R 2.4GHz frequency band
     - IEEE 802.11b/g/n
     - Web based UI for configuration
     - Connects to the local server or remote cloud

General

     - Input: DC 5.0V, 1A, micro-USB
   - Supports 802.3af PoE standard
   - Supports firmware upgrade Over-the-Air
   - Operating temperature: -25℃ to 65℃
   - Reads multiple BLE devices in the same time
   - Supports TCP/HTTP/MQTT/mbed(ARM)
   - Built-in RTC and NTP support
   - RGB LED string as the status indicator
   - Based on OpenWrt 15.05

Application
- iBeacon / Eddystone / other BLE Beacon receiver
- BLE sensor reader / receiver
- Asset tracking
- Access control management
- Advertisement promotion
- Indoor location and position
- Industrial automation
Packing & Delivery

               For samples: we would send samples via DHL Express within about 2 days after payment, then you would receive them in about 4 to 5 days.

          For orders: bulk orders usually take about 2 to 3 weeks after payment received

Details
Package Box
Carton
Quantity(G1)
1 pc
12 pcs
Size
23*16*5cm
32*23.5*40cm
Gross Weight
0.5kg
6kg
