Minew i7 bluetooth beacon interactor ble beacon tag

FOB Reference Price:Get Latest Price
$1.00 - $12.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
i7
Brand Name:
Minew
Place of Origin:
Guangdong, China
Product name:
Minew i7 bluetooth beacon interactor ble sticker beacon tag
Chipset:
nRF52832
Advertising distance:
100m max
Support device:
iOS7.0+Android 4.3+system/Bluetooth 4.0
Transmission power range:
-30dBm+4dBm
Connection mode:
Advertising mode( non-connectable) Configuration mode( connectable)
Application:
Outdoor advertising and Location services.
Accelerometer:
3-axis
Accessories:
Double adhesive, 3M brand
Broadcasting Interval:
900ms
Supply Ability
Supply Ability:
20000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Minew i7 bluetooth beacon interactor ble sticker beacon tag :
Standard iBeacon Package Box: 30.5 x 11 x 7.5 cm, 20pcs per inside package box.
Standard iBeacon Package Carton:32 x 23 x 40 cm, 200pcs per outside per carton.
Port
shenzhen
Video Description
Product Description

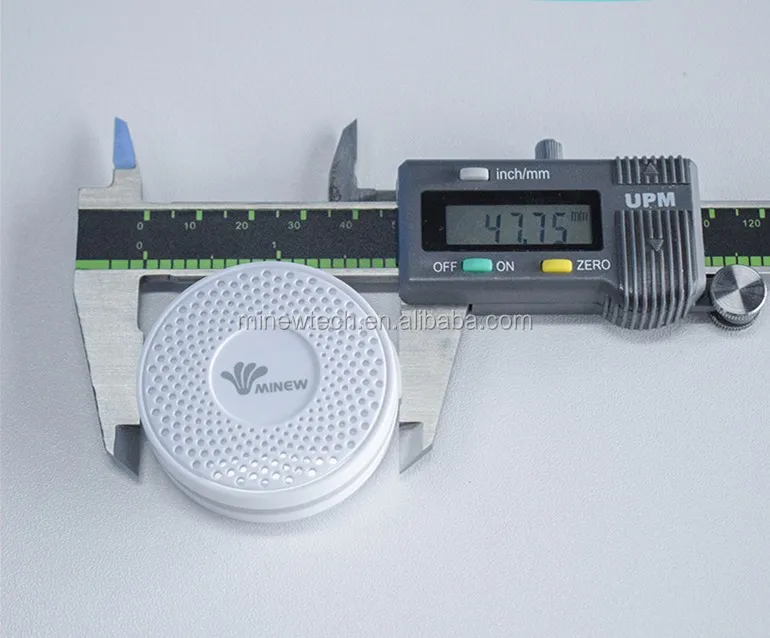

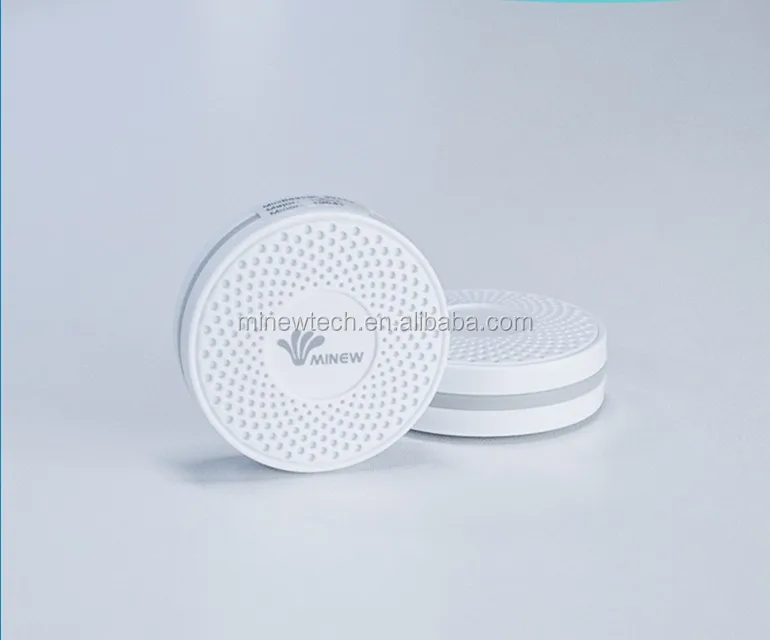

Minew i7 bluetooth beacon interactor ble sticker beacon tag


i7 Accelerometer sensor Beacon is with multiple advertising data formats. The BLE is a very low power 2.4G radio that can transmit the beacon information effectively. The typical beacon battery life is 2 year in default seetings. You can use app BeaconSET to check the sensor data.

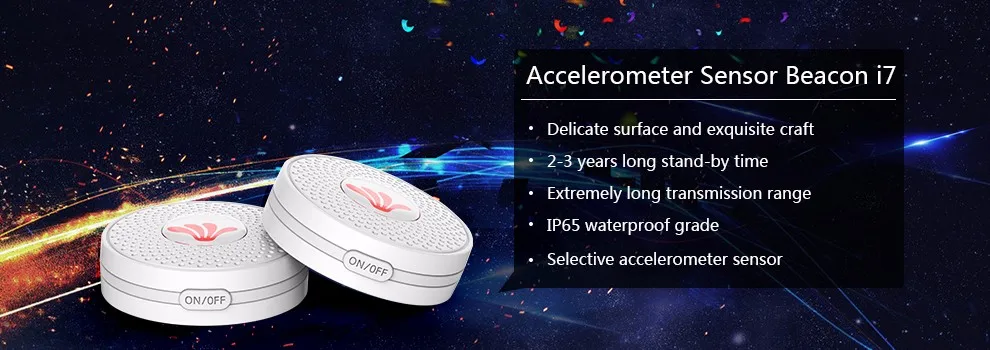

Features of i7 Accelerometer sensor:

- Programmed MiniBeacon standard firmware
- Powered by 1pc CR2477 coin batery
- Omni-directional PCB antenna
- The max. 100 meters advertising distance
- Waterproof IP66
- Ultra-low power consumption chipset nRF51822 with ARM core

Specification:

Item
Value
Remarks
Firmware
BLE4.0 Stack
V1.4x
Battery Model
1*CR2477
1000mAh, 3.0V
Operation Voltage
1.8-3.6V
DC
Transmission  Circuit
10.5 mA(max.)
Tested at 0dBm transmission power
Tranmission Range
100 meters
Maximum
Antenna
50 ohm
On board/pcb Antenna
Accessories
Adhesive
1pc, high-strength, 3M brand
Output power
0dBm
Default setting, programmable

Product details:

Application of Accelerometer i7

It is designed for commercial advertising and indoor location-based service, such as airport, hospital, museum etc. Support iOS7.0+/ Android 4.3+( bluetooth 4.0).

How to operate the Accelerometer Beacon i7


1.  Turn on

      1.1 Press the ON/OFF button and kepp holding 5 seconds, the Blue LED will light on 5 seconds and then off; it means that the Beacon is under the working mode;

      1.2 If moved the beacon i7, its accelerometer sensor will be activated and then the beacon start to           broadcast the data;


2. Turn off

     2.1 Press the ON/OFF button and keep holding 5 seconds, the Blue LED will flash 5 times and then off; it means that the beacon is under the  sleep mode.

Customized services:

1. Casing 3D development and mold tool making;

2. Schematic design and PCB hardware development;

3. Logo/ brand printing;

4.UUID, Major, Minor and other parameters pre-configuration;

5.Firmware development and pre-load in the factory;

6.Fast prototyping service;

7.Package design and making service

8. Production and assembly service.

Related Products

E6 label beacon

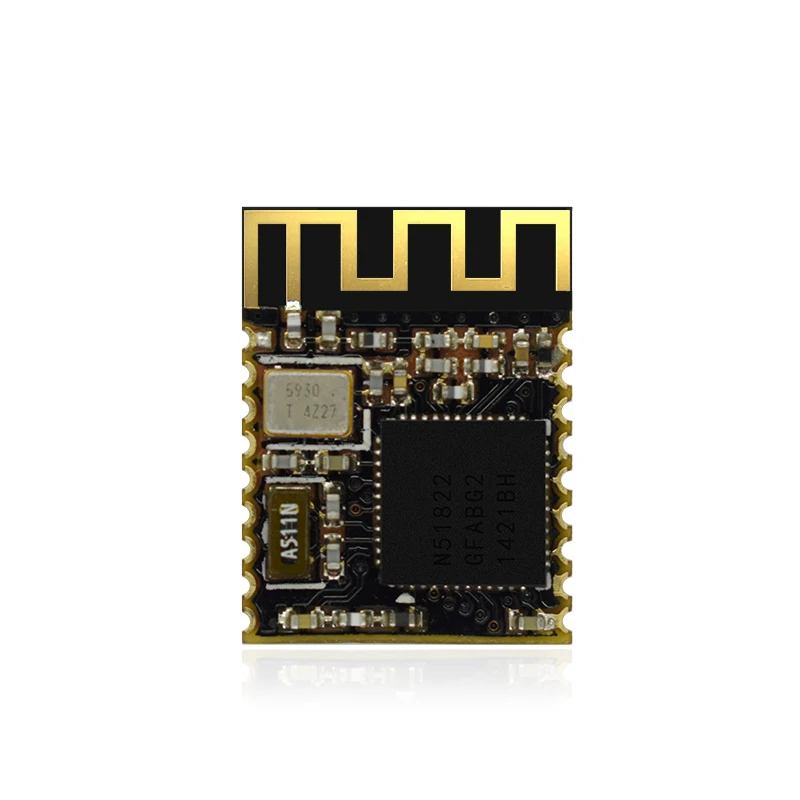

Bluetooth moudle MS49SF2


F3 smart key  tracker


Our Company

Founded in 2007,Minew has been engaged in IoT (Internet of Things) field for years and is keeping updated to the market demand all along.We are an ISO9001:2008 certified manufacturer focusing on RF / Wireless products such as 2.4GHz BLE 4.0 related products.We focus on designing and manufacturing many different high quality and low cost iBeacons hardware , offering one-stop services include:

1. Schematic design;
2. Mold design;
3. PCB layout;
4. Firmware design;
5. Production and assembling
.

Warmly welcome the OEM and ODM projects.

Trade show:

Certifications
Packing & Delivery

According to our customers requirements, we are willing to handle shipment for our customers, and the shipment fee is needed in this case.
Fast Express like DHL,UPS, TNT, FedEx are all available here.
Or if our customers have their own Express account, freight forwarder in China,
we are happy to contact their Express people or freight forwarder to pick up products from our factory.

FAQ

Do you have configure app and instruction?
Yes,we will provide you after you buy our sample.

Can I change the password?
Yes,you can change what you want to set.

Do you have API or the source code?
Yes,we will provide you after sample was arrived.

Does MiniBeacon comply with Apple's iBeacon standard?
Yes,MiniBeacon has been licensed by Apple ibeacon program with contact No.iBC-14-00582.
