Programmable beacon Bluetooth Waterproof IP67 ibeacon and Eddystone

FOB Reference Price:Get Latest Price
$6.00 - $12.00 / Pieces | 3 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
E7
Brand Name:
Minew
Place of Origin:
Guangdong, China
Product name:
Programmable ibeacon and Eddystone
Chipset:
Nordic nRF52832
Core tech:
Bluetooth Low Energy 5.0
Battery type:
1 x CR2477
Battery lifetime:
2 years
Voltage:
1.8-3.6V
Transmission current:
5.3mA (peak current)
Transmission range:
100m
Waterproof grade:
IP67
Features:
rotatable case
Supply Ability
Supply Ability:
20000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Bluetooth 5.0 Accelerometer Ibeacon Waterproof Ble Sensor Beacon package details:
20pcs per box
200pcs per carton
Port
Shenzhen
Lead Time :
1-2 working days



What is an iBeacon?

An iBeacon is a low-cost, low-power transmitter which can be detected by mobile devices.

How Do iBeacons Work?

Each iBeacon must be setup with a location-specific ID (UUID), latitude and longitude. Each UUID must be
registered within your app. Apple supports awareness of up to 20 iBeacons at any given time. Attributing
based on your iBeacons is a snap! Just log into the iBeaconSET to add or edit.







Product Description

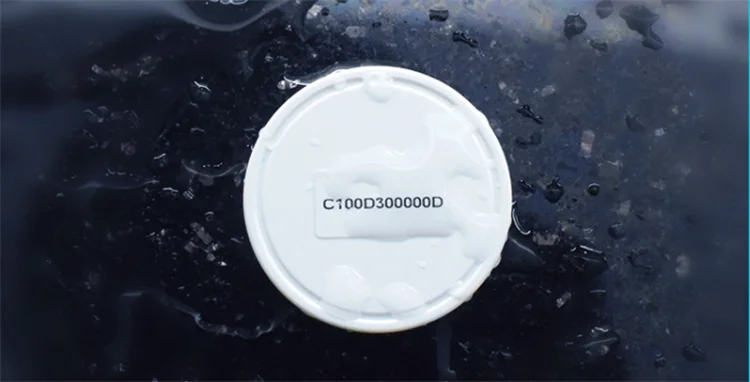

E7 is a BLE (Bluetooth Low Energy / version smart 5.0 / 2.4GHz) Beacon with rotatable white case. Cover the range to Dia 120m and reduce the power comsuption to 35uA average only
As it is an active tag, it has a CR2477 battery and been developed to work with iOS 7.0 and Android 4.3+System competible.
It has 6 broadcasting slot for iBeacon, URL, UID, TLM, INFO, you could download our APP " BeaconSET+ " setting the parameters for testing.

Technical Datas:
    BLE5.0
    ARM core chipset nRF52832
    Protocal: iBeacon, Eddystone
    Working frequency: ISM frequency 2.4GHz
    Broadcast range: over 120 m
    Battery: 1 pc CR2477( could last over 3 years)
    Average power consuption: 35uA



Features of Programmable beacon Bluetooth Waterproof IP67 ibeacon and Eddystone



1. IP67 waterproof

2. Replaceable coin battery 1000mAh

3. Advertising iBeacon & Eddystone & Sensor data

4. Unique MAC address (ITU)

5. Bluetooth 5.0 chipset nRF52 series

6. The max. 100 meters advertising distance

7. Hidden power ON/OFF push button











Applications of Programmable beacon Bluetooth Waterproof IP67 ibeacon and Eddystone



Monitoring: In retail: In retail, a department store uses monitoring to analyze in-store behavior of their customers, assess the effectiveness of marketing programs and promotions, and learn about their staff’s utilization.



Tracking:NDOORS: A hospital group can provide physicians with wearables that report their location, enabling all doctors to be tracked inside the buildings as well as in transit to other facilities.



Proximity:

1.Museum : A visitor at a museum automatically receives information about an exhibit when standing in front of it.

2.Check in: Guests “check in” automatically when entering a hotel lobby, and are subsequently directed to their assigned rooms. No standing in line at the registry, and no wait.

3.Coupons: Customers at a retail establishment receive coupons for promotional items as they enter the store







Configuration APP: iBeaconSET+



If you need to modify the parameters of bluetooth 4.0 iBeacon, we can provide modification service. Besides, UUID, Major, Minor, Serial ID, Transmission power, Broadcasting interval, ibeacon name, Password, can be changed by customers.





Packaging & Shipping



 Standard Package







Delivery



1.Delivery will be arranged by DHL/UPS/Fedex/TNT/EMS, normally it will take 3-7 working days.

2.We can help ship the goods by air line,then you need to go to Air port to take it ,it takes about 2-7 days to arrive .
3. If you have your own express account, we can help call them to pick up the goods in our company.





Company Information


About our company and factory

Founded in 2007,Minew has been engaged in IoT (Internet of Things) field for years and is keeping updated to the market demand all along.
We are an ISO9001:2008 certified manufacturer focusing on RF / Wireless products such as 2.4GHz BLE 4.0 related products.
We focus on designing and manufacturing many different high quality and low cost iBeacons hardware , offering one-stop services include:


1. Schematic design;
2. Mold design;
3. PCB layout;
4. Firmware design;
5. Production and assembling.
Warmly welcome the OEM and ODM projects.







Certification







Our Services


1. Print your logo on the top of MiniBeacon;
2. Programmer your firmware into iBeacon Module;
3. Pre-configure the value of parameter before the shippment;
4. PCB can be customized if needed;
5. Package can be customized if required;
6. Prototyping the casing and mold tool design and injection service.



FAQ



Do you provide the technical support to the developers?
Re: SURE. The following technical data and documents will be provided to developers.
1. SDK 2. API 3. Demo APP 4. Configuration APP 5. Instructions



Can I change the password?
Re: Yes, you can use configuration APP to change password by yourself.



Do you have SDK or the source code?
Re: Yes, we will provide you after sample was arrived.



Does MiniBeacon comply with iBeacon standard?
Re: Yes,MiniBeacon has been licensed by ibeacon stamdard program with contact No.iBC-14-00582.
