Newest S1 bluetooth temperature sensor wireless gateway beacon

FOB Reference Price:Get Latest Price
$20.00 - $25.00 / Pieces | 3 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
S1
Brand Name:
Minew
Place of Origin:
Guangdong, China
Product name:
bluetooth sensor gateway beacon
Chipset:
Nordic nRF52832
Case color:
White
Battery Type:
2*FR03 Li-Fe battery
Battery lifetime:
3 years
Transmission range:
100m
System Upgrate:
OTA
Waterproof grade:
IP66
working temperature:
-40°~70°
Application:
machine manufacture,environmental protection and metering etc.
Supply Ability
Supply Ability:
30000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Newest S1 bluetooth temperature sensor wireless gateway beacon package details:
30.5 x 11 x 7.5 cm, 12 pcs per package box.
32 x 23 x 40 cm, 1200 pcs per carton.
Port
Shenzhen
Lead Time :
1-2 working days
Product Description

Newest S1 bluetooth temperature sensor wireless gateway beacon

S1 is a BLE (Bluetooth Low Energy / version smart 5.0 / 2.4GHz) Beacon with temperature sensor and humidity sensor. Cover the range to Dia 100m and reduce the power comsuption to 35uA average only

As it is an active tag, it has a battery(dismountable) and been developed to work with iOS 7.0 and Android 4.3+System competible.
It will always broadcast the real-time information of the ambient temperature and humidity, you could download our APP " BeaconSET+ " and check the information.

Technical Datas:
Working frequency: ISM frequency 2.400~2.483GHz
Broadcast range: over 100 m
Battery capacity: 1250mAh( could last over 3 years)
Sensor: High-accuracy digital temperature and humidity sensor inside.
Data Indication: N/A, need to access data by App or gateway
Average power consuption: 35uA

Advantages:
High accurate digital pre-calibrated relative humidity and temperature sensor
Real-time data converting, storing and uploading
Long-time working endurance
IP66 waterproof
Use ultra-low power consumption chipset nRF52832 with Cortex -M4F CPU
Excellent security mechanism
Support the customized service such as firmware, logo and other

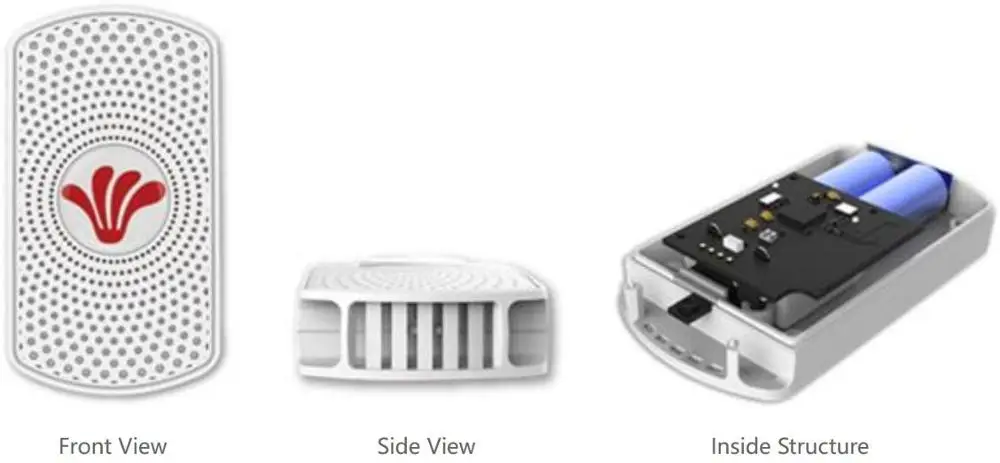

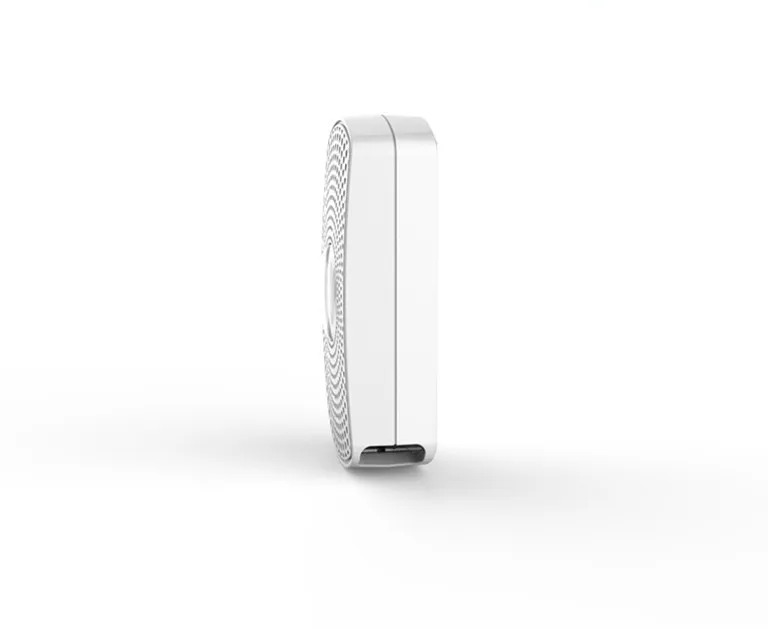

 S1 humidity and temperature sensor beacon pictures

PHYSICAL PROPERTY
Module
S1
Waterproof level
IP66
Case material
ABS
Case color
White
Product size
70.6*38*17.8mm
Unit weight
43g
Battery type
2*FR03 Li-Fe battery
Voltage
3v
Data Indication
N/A, need to access data by app or gateway
Average power consumption
35uA
Transmission Range
Max 100m in open space
Assemble
3M adhesive

TECHNICAL PARAMETER

Item
Value
Error range



Temperature Measure

range

-40℃~70℃
depends on battery working environment

Measure Accuracy
10℃~50℃
±0.5℃
≤10℃ or  ≥50℃
±2℃
Resolution
0.05℃
---


Humidity Measure
range
0%RH~100%RH
---

Measure Accuracy
0%RH~90%RH
±2.5%RH
≥90%RH
±3.5%RH
Resolution
0.05%RH
---

Sampling Period

---

Once per second

---

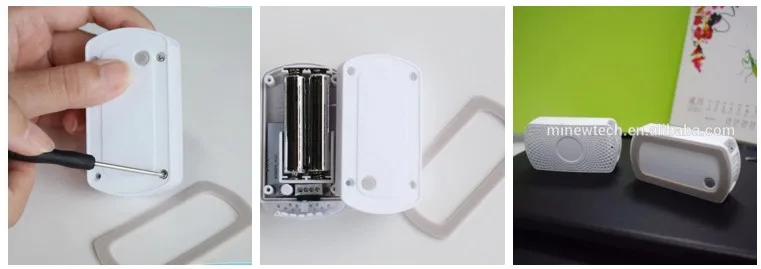

How to open and replace battery?

Applications

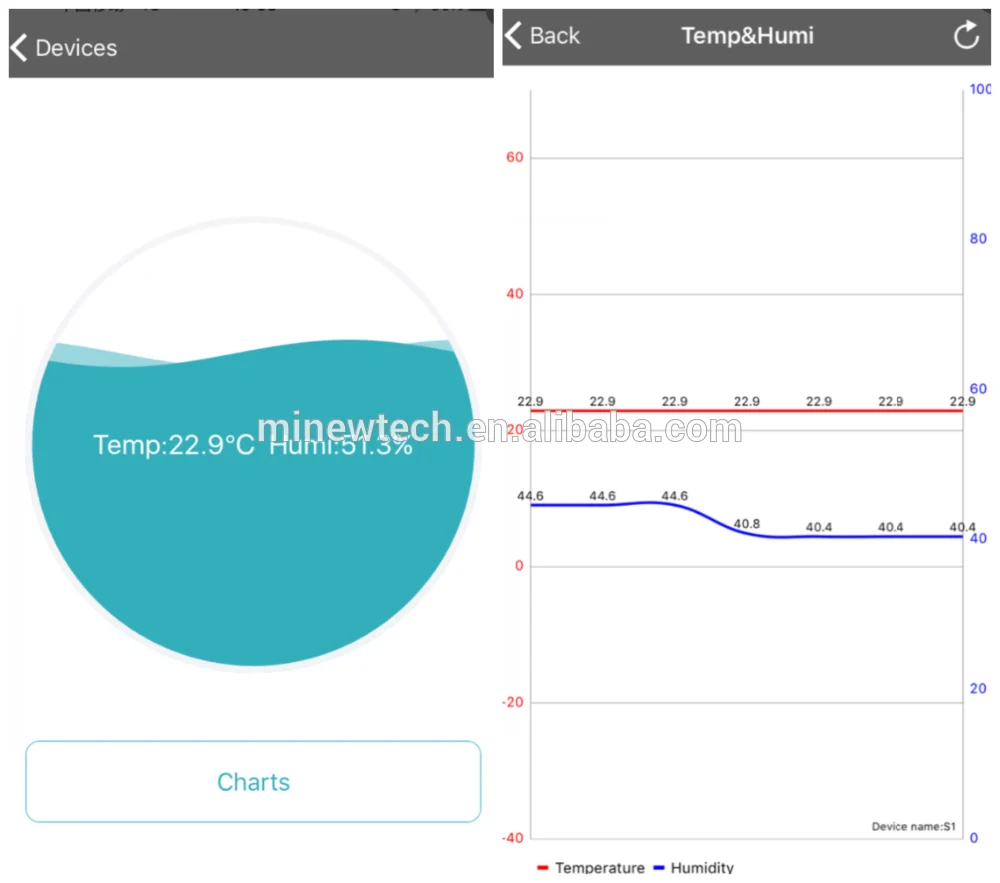

Config APP: BeaconSET+

Config App for both ios and android and SDK will be provided.
Download the config app: BeaconSET on ios and android phones.

Newest S1 bluetooth temperature sensor wireless gateway beacon

It can be used to measure environmental temperature and humidity in fields such as industrial inspection, civil inspection, machine manufacture, environmental protection and metering so on. So its application occasions cover: laboratory, clean workshop, collection place, home, agricultural greenhouse, weather station, national defense and science research, posts and communications, tobacco, chemistry and engineering, environmental protection, archive and library, server room, storage, medical treatment and public health, hotel, food storeroom, and grain reserve.

Company Information

Minew specialized in IoT (Internet of Things) field, focus on high quality beacon device development, from the design, manufacture to sale. We established since 2007 and is the leading IoT related manufacture now.

Via providing smart devices and IoT solutions, we serve to optimize customers' lives, works and businesses, improving efficiency and convenience.
We have/certificated:
IOS9001:2008 Quality Management System
Professional R&D team, sales team and effective production line
CE, FCC, RoHs, ANATEL, Japan Radio Frequency Permit

For more please have a visit at our website: https://minew.en.alibaba.com

Certifications
Packing & Delivery

Standard package

1pc S1 temperature sensor ble beacon

12 pcs S1 temperature sensor ble beacon per box

120 pcs S1 temperature sensor ble beacon per carton

Delivery

1.Delivery will be arranged by DHL/UPS/Fedex/TNT/EMS, normally it will take 3-7 work days.
2.We can also help you ship the goods by air line, then you need to go to Air port totake it, it takes about 2-7 days to arrive.
3.If you have your own Express account, we can help call them to pick up the goods in our company.


FAQ

Do you provide the technical support to the developers?
Re: SURE. The following technical data and documents will be provided to developers.
1. SDK 2. API 3. Demo APP 4. Configuration APP 5. Instructions

Can I change the password?
Re: Yes, you can use configuration APP to change password by yourself.


Do you have SDK or the source code?
Re: Yes, we will provide you after sample was arrived.

Does MiniBeacon comply with iBeacon standard?
Re: Yes,MiniBeacon has been licensed by ibeacon stamdard program with contact No.iBC-14-00582.
