Light and Motion Sensor ibeacon manufacturer Asset Tracking Sensor

FOB Reference Price:Get Latest Price
$9.00 - $10.00 / Pieces | 3 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
E6
Brand Name:
Minew
Place of Origin:
Guangdong, China
Product name:
Light and Motion Sensor Beacon
Chipset:
Nordic nRF52832
Battery Type:
1xCR2032
Battery lifetime:
5 years
Transmission range:
100m
Light sensor:
Photoresistor
Case color:
Black
Transmission circuit:
6.5mA ( Max.)
Antenna:
50ohm
Broadcasting interval:
10s
Supply Ability
Supply Ability:
20000 Piece/Pieces per Day

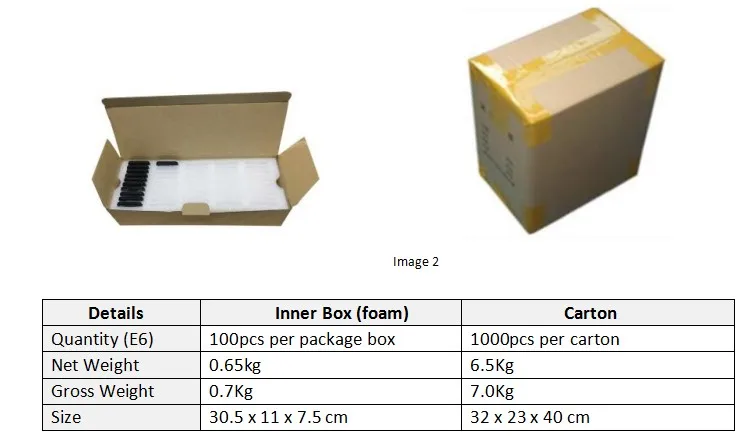

Packaging & Delivery
Packaging Details
ambient light sensor bluetooth ibeacon
1. 100pcs per package box
2. 1000pcs per carton
Port
Shenzhen
Product Description

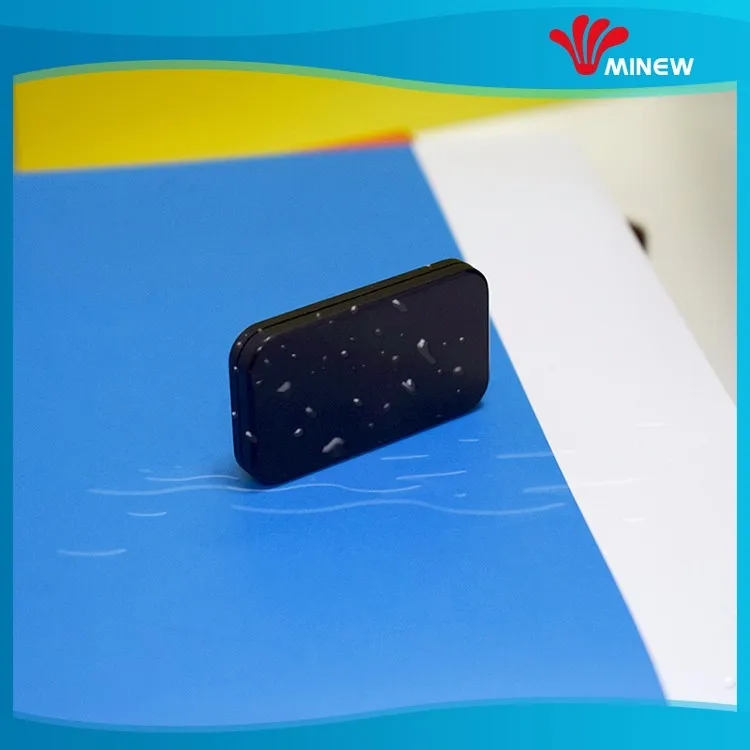

Light and Motion Sensor ibeacon manufacturer Asset Tracking Sensor

E6 is a BLE (Bluetooth Low Energy / version smart 5.0 / 2.4GHz) Beacon with light sensor inside. Cover the range to Dia 100m and reduce the power comsuption to 35uA average only

As it is an active tag, it has a CR2032 battery and been developed to work with iOS 7.0 and Android 4.3+System competible.
It has 6 broadcasting slot for iBeacon, URL, UID, TLM, INFO, you could download our APP " BeaconSET+ " setting the parameters for testing.


Technical Datas:
BLE5.0
Light sensor, photoresistance inside
ARM core chipset nRF52832
Protocal: iBeacon, Eddystone
Working frequency: ISM frequency 2.4GHz
Broadcast range: over 100 m
Battery: 1 pc CR2032( could last over 1 years), non-replaceable
Average power consuption: 35uA

Item
Value
Remarks
Case color
Black
Null
Battery Model
1 x CR2032
230mAh, 3.0V
Operation voltage
1.7-3.6V
DC
Transmission circuit
6.5mA (Max.)
Tested at 0dBm transmission power
Transmission range
100meters
Maximum
Light sensor
Photoresistor
Null
Broadcasting interval
10s
Null
Antenna
50ohm
On board / PCB Antenna
Accessories
Double adhesive
1pc, high-strength, 3M brand
Net weight
6.5g
With battery but without package
Size
42.5*23.5*5.3mm
Null
You may also like

F4 key tracker

E2 waterproof beacon

S1 temperature and humidity sensor

Applications
Company Information

Minew was founded in 2007, engaging in IOT (Internet Of Things) field for years and keeping updated to the market demand all along.
Via providing smart devices and IoT solutions, we serve to optimize customers'lives ,works and businesses, improving their efficiency and convenience. This is achieved by connecting our products to cusotomers’ smart ends (usually smartphones),in wi-fi covered space, with bluetooth functions on and products attached to target objects. Thus people could posite, find,track,receive messages,check status and even control target objects.
We are an ISO9001:2008 certified manufacturer focusing on RF / Wireless products such as 2.4GHz BLE 4.0 related products.

We only focus on designed and manufactured many different high quality and low cost iBeacons hardware and one-stop services.
1. Schematic design;
2. Mold design;
3. PCB layout;
4. Firmware design;
5. Production and assembly.
Warmly welcome the OEM and ODM projects.


With these years expansion of our company, our customers grow up bigger and bigger. Our over seas main market covered North America, Europe, South Asia, Mid East, Africa, Centra America, South America, sharing is 35%, 47%, 5%, 5%, 3%, 3%, 2%.51%-60% export percentage taken up from our total turnover, just because we Minew owned a great reputation and rich experience in this industry, and a good customer service, including our one-stop OEM service and After-Sales service, avoiding the concerning of our clients.

Light and Motion Sensor ibeacon ---Customize service

- Print your logo on the top of MiniBeacon;
- Programmer your firmware into iBeacon Module;
- Pre-configure the value of parameter before the shippment;
- PCB can be customized if needed;
- Package can be customized if required;
- Prototyping the casing and mold tool design and injection service.

Certifications
Packing & Delivery
For samples: we would send samples via DHL Express within about 2 days after payment, then you would receive them in about 4 to 5 days.

For orders: bulk orders usually take about 2 to 3 weeks after payment received

FAQ

Do you provide the technical support to the developers?
Re: SURE. The following technical data and documents will be provided to developers.
1. SDK 2. API 3. Demo APP 4. Configuration APP 5. Instructions

Can I change the password?
Re: Yes, you can use configuration APP to change password by yourself.


Do you have SDK or the source code?
Re: Yes, we will provide you after sample was arrived.

Does MiniBeacon comply with iBeacon standard?
Re: Yes,MiniBeacon has been licensed by ibeacon stamdard program with contact No.iBC-14-00582.
