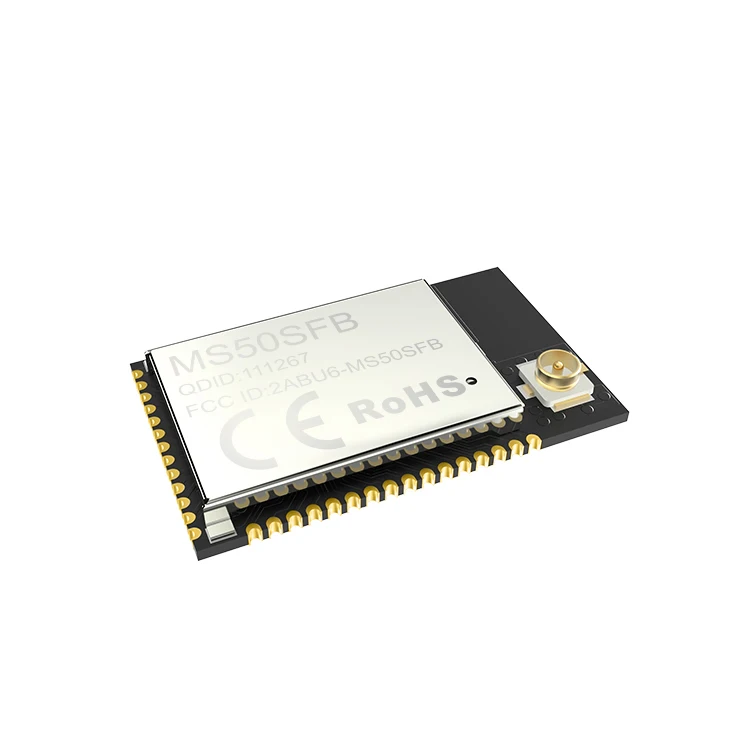

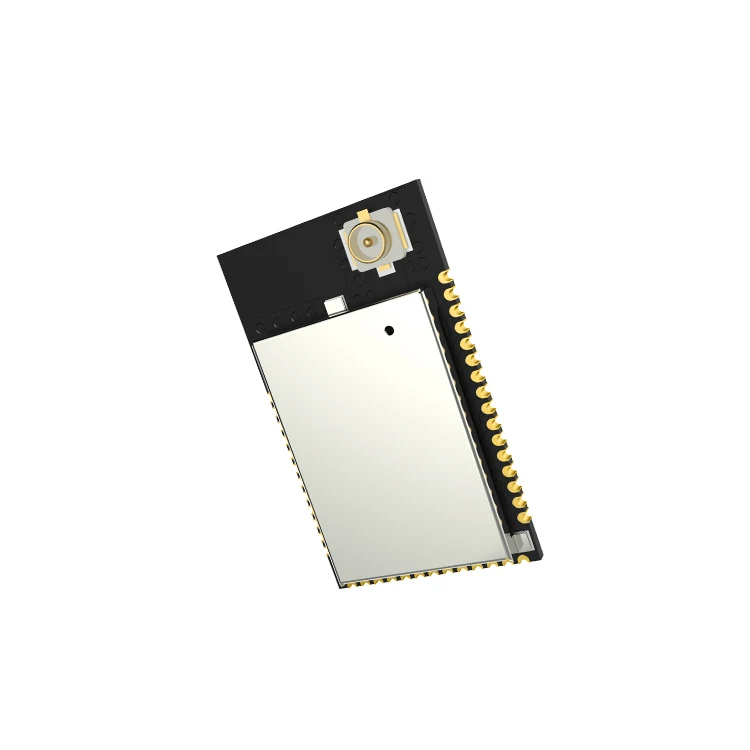

Bluetooth certificated BLE 5.0 nRF52832 module with shield

FOB Reference Price:Get Latest Price
$5.50 - $5.99 / Pieces | 3 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
MS50SFB
Brand Name:
Minew
Place of Origin:
Guangdong, China
Operation Frequency:
2402-2480MHz (programmable)
Max. Output power:
+4dBm
Single power supply:
1.8 to 3.9V
Range:
10-60 meters
Chip:
nRF52832 (Nordic)
GPIO Quantity:
32
Module size:
20.0 x 12.0 x 2.0 mm
3 optional antenna types:
PCB antenna, chip antenna, IPEX connector
Operating Temperature range:
-25 to 85 degree Celsius
Certification:
BQB/CE/FCC
Supply Ability
Supply Ability:
50000 Piece/Pieces per Day

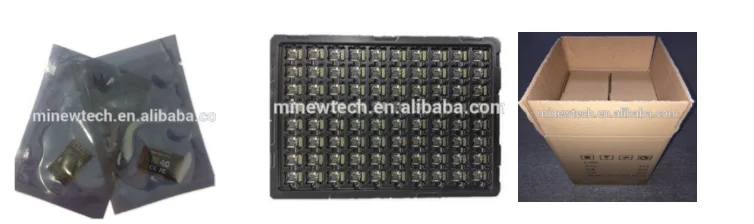

Packaging & Delivery
Packaging Details
Package of Bluetooth MS50SFB low energy module: (Industrial packaging)
80pcs nRF52832 transmitter module per plate.
1000pcs bluetooth module per caton.
Port
Shenzhen
Product Description
The MS50SFB is a compact small size Bluetooth 5.0 module with ultra-low power consumption and optional antenna types; it is very suitable for the coin cell battery powered applications.

The module is highly integrated that contains all the necessary components from radio to different antenna and a completely implemented Bluetooth protocol stack and pre-flashed UART communication protocol.

 Physical Dimension  (Unit: mm)

Certifications

•CE Certification

•FCC Certification (FCCID: 2ABU6-MS50SFB)

•BQB Certification (QDID: 111267)

Features:

•Frequency: 2402 to 2480 MHz
•Max. Output power: +4dBm
•Single power supply: 1.8 – 3.9V
•Range: 10-60 meters
•Chip: nRF52832 (Nordic)
•GPIO Quantity: 32
•512kB Flash and 64kB RAM
•Module size: 20.0 x 12.0 x 2.0 mm
•NFC type A interface
•ARM Cortex-M4F processor
•Metal shielding with marking
•UART communication protocol (Slave / Master optional)
•3 optional antenna types: PCB antenna, chip antenna, IPEX connector
•Operating Temperature range: -25 to 85 degree Celsius

Applications:

•Cycle computer                                          •Mobile accessories
•Heart rate monitor                                     •Sports and fitness sensors
•Blood pressure monitor                            •Remote controllers / Toys
•Blood glucose meter                                 •Key fobs and wrist band
•Weighing machine                                    •3D glasses and gaming controller
•Thermometer

Related Products

MS49SF1 Bluetooth UART moudle

0

           MS49SF2 BLE moudle

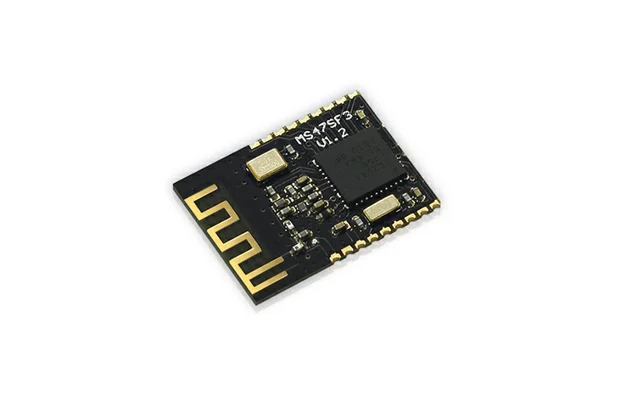

MS47SF3 Wireless ble moudle
