E5 Location Beacon Long Battery Life Ble 4.0 ibeacon Nrf51822 Chip

FOB Reference Price:Get Latest Price
$6.00 - $12.00 / Pieces | 3 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
E5
Brand Name:
Minew
Place of Origin:
Guangdong, China
Item:
E5 Location Beacon
Chipset:
Nordic nRF51822
Battery Type:
2*ER14250
Battery lifetime:
5 years
Operation voltage:
1.8-3.6v
Transmission range:
100m
Case color:
White
Antenna:
50ohm
Transmission circuit:
10.5mA
Accessories:
Double adhesive
Supply Ability
Supply Ability:
50000 Piece/Pieces per Week
Packaging & Delivery

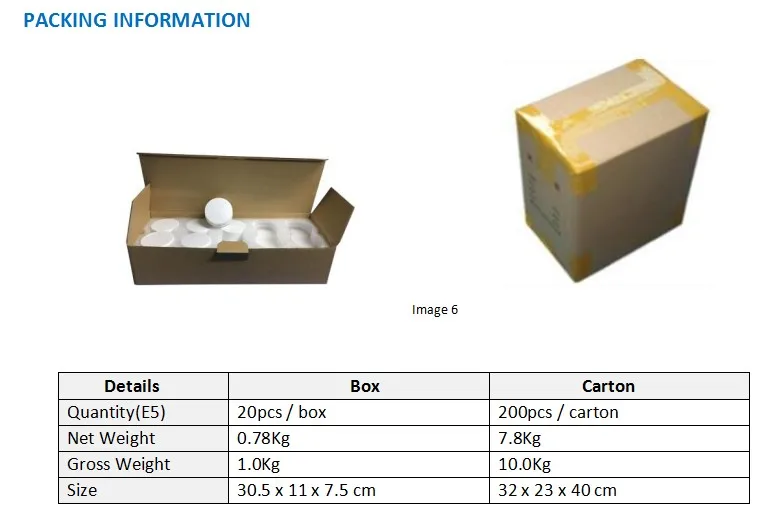

Packaging Details
E5 Location Beacon Long Battery Life Ble 4.0 ibeacon Nrf51822 Chip package details:
20pcs/box; 30.5*11*7.5cm
200pcs/carton; 32*23*40cm
Port
Shenzhen
Lead Time :
Within 48 hours after payment received
Product Description

E5 Location Beacon Long Battery Life Ble 4.0 ibeacon Nrf51822 Chip

E5 is a BLE (Bluetooth Low Energy / version smart 4.0 / 2.4GHz) Beacon with 2 pcs ER14250 batteries. Cover the range to Dia 100m and reduce the power comsuption to 46uA average only
As it is an active tag, it is battery powered(replaceable) and been developed to work with iOS 7.0 and Android 4.3+System competible.
It will always broadcast the iBeacon frames like UUID, Major, Minor, you could set those parameters as well as transmission power, broadcast internal ... via our comfiguration APP " BeaconSET ".

Technical Datas:
Working frequency: ISM frequency 2.400~2.483GHz
Broadcast range: 100m max
Battery capacity: 5 years
SDK: available
Average power consuption: 46uA

Advantages:
Round shape, rotatable case, easy change the batteries
Standard iBeacon protocol, UUID, Major, Minor
Accurate locating.
Use low power consumption chipset nRF51822 with Cortex -M4F CPU
Excellent security mechanism
Support the customized service such as firmware, logo and other

Compatibility
-Supported iOS 7.0+ and Android 4.3+ system;
-Compatible with Apple iBeaconTM standard;
-Compatible with all Bluetooth 4.0 (BLE) devices;

Long Battery Lifetime and Battery Level
-5 years, with the default settings;
-LED will be flashing when battery low;
-Easy to get the real-time battery level notification;

Soft-reboot
-Reboot the device via command without any tools;

OTA and J-Link
-Supported upgrade via Over-The-Air;
-Reserved J-Link port on the board for programming;

Connection Mode
-Advertising mode, non-connectable;
-Configuration mode, connectable;

Configurable Parameters
-UUID, Major, Minor, Device Name, Password etc.
-Special Configuration APP;

Transmission Power Levels
-8 adjustable levels, range from 0 to 7
-Transmission power range: -30dBm to +4dBm;

Long Range
-The max. Range 100 meters in the open space;
-The range depends on the physical environment;

Security
-8 characters password (Lock/Unlock parameters);
-Broadcast the encrypted data if needed;
-AES HW encryption

Mounting
-3M branded adhesive for direct mounting to wall;
-Supports magnetic adsorption deployment;


The products you may like

F4S key tracker

E2 waterproof beacon

Accelerometer sensor
Applications

E5 Location Beacon Long Battery Life Ble 4.0 ibeacon Nrf51822 Chip

Accurate Indoor Location
--E5 is able to detect distance even calculate its position within the range.

Asset Tracking
--E5 ibeacon broadcasts and transmits 2.4GHz radia signals at the regular and adjustable intervals.

Logistics Management

Commercial Advertising
--For traditional offline retailers, engage your customers and visitors through context based and personalized advertising.- Optimize shopping experience.

Application 2

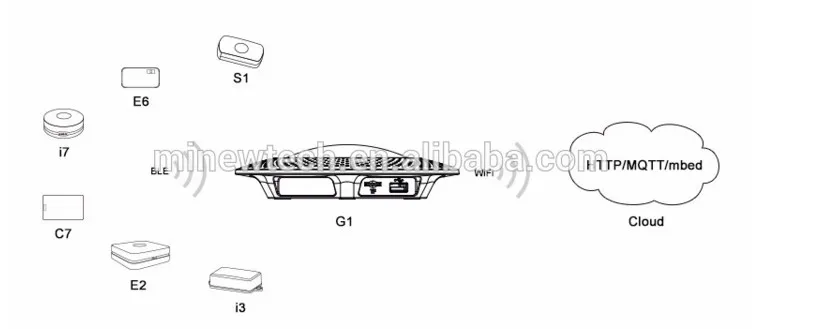

You could also use this product together with our IoT gateway G1. G1 is desined as a cloud service and it coud collect the data signal broadcasted from the beacon and then store the data for deployers' later use.

Company Information

Minew specialized in IoT (Internet of Things) field, focus on high quality beacon device development, from the design, manufacture to sale. We established since 2007 and is the leading IoT related manufacture now.
Via providing smart devices and IoT solutions, we serve to optimize customers' lives, works and businesses, improving efficiency and convenience.
We have/certificated:
IOS9001:2008 Quality Management System
Professional R&D team, sales team and effective production line
CE, FCC, RoHs, ANATEL, Japan Radio Frequency Permit


For more please have a visit at our website: https://minew.en.alibaba.com

Certifications
Packing & Delivery

For samples: we would send samples via DHL Express within about 2 days after payment, then you would receive them in about 4 to 5 days.
For orders: bulk orders usually take about 2 to 3 weeks after payment received

FAQ

Do you provide the technical support to the developers?
Re: SURE. The following technical data and documents will be provided to developers.
1. SDK 2. API 3. Demo APP 4. Configuration APP 5. Instructions

Can I change the password?
Re: Yes, you can use configuration APP to change password by yourself.


Do you have SDK or the source code?
Re: Yes, we will provide you after sample was arrived.

Does MiniBeacon comply with iBeacon standard?
Re: Yes,MiniBeacon has been licensed by ibeacon stamdard program with contact No.iBC-14-00582.
