Replaceable AA Battery Wireless iBeacon and Eddystone UID URL TLM

FOB Reference Price:Get Latest Price
  • >=3 Pieces
    $16.00
Report Suspicious Activity
Overview
Quick Details
Model Number:
E2 Wireless iBeacon and Eddystone
Brand Name:
Minew
Place of Origin:
Guangdong, China
Battery type:
4pcs AA batteries, replaceable
Transmission Range:
300 meters
Approval:
CE FCC
Type:
Bluetooth 5.0 Low Energy
Chipset:
Nordic nRF52810
OTA and J-Link:
Supported
Antenna:
100ohm
Accessories:
Double adhesive
Size:
72 x 72 x23 mm
Net Weight:
109.0g
Supply Ability
Supply Ability:
20000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Replaceable AA Battery Wireless iBeacon and Eddystone UID URL TLM
8pcs/box;
80pcs/carton
Port
Shenzhen
Lead Time :
In 2 working days after payment
Product Description

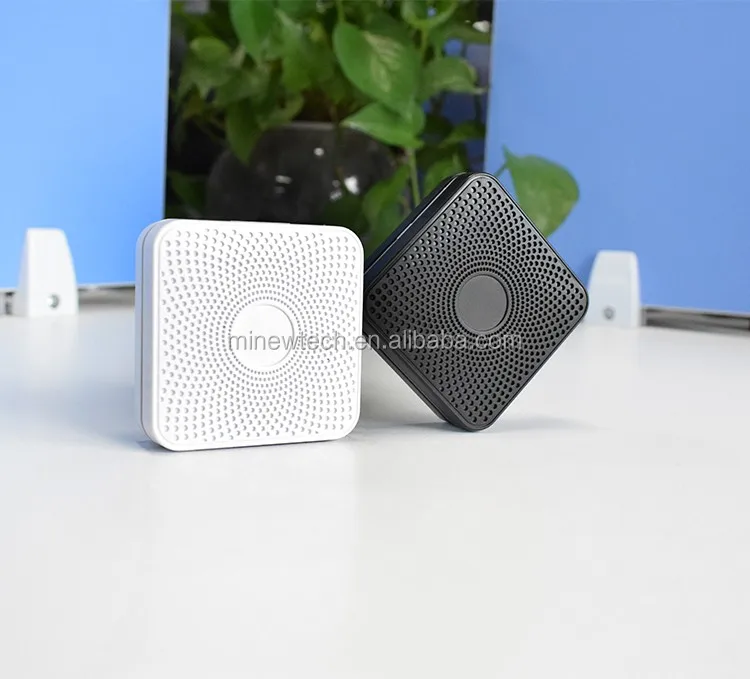

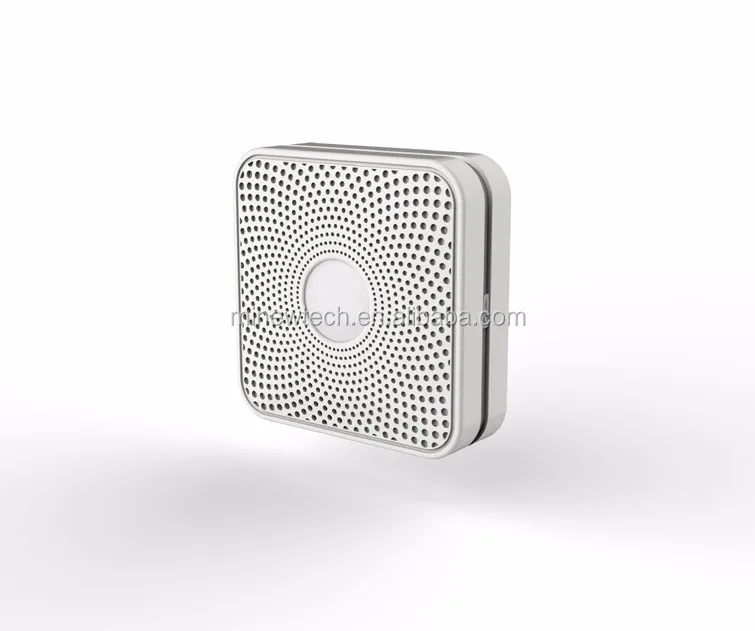

Wireless iBeacon and Eddystone E2

- The MaxBeacon E2 is a new generation super-long range and waterproof beacon that loaded Bluetooth 5.0 hardware platform and MiniBeacon Plus intelligence software.
- E2 advertises standard iBeacon and Eddystone (UID,URL,TLM) simultaneously.

- The E2 MaxBeacon has 4400mAh battery capacity and advertises data up to 200 meters in open space, it can works at the range of temperature -25 to 55℃.

FEATURES

- Advertise iBeacon & Eddystone simultaneously
- Unique MAC address (ITU)
- Bluetooth 5.0 chipset nRF52 series
- IP66 Waterproof
- Replaceable AA battery (default: alkaline)
- The max. 200 meters advertising distance
- Operation temperature -25 to 55℃

Configure App: BeaconSET+


Bluetooth Smart Beacon Certification:

Related products

E2 Enhanced Version:

- With power amplifier (500 meters range)

- Operation temperature -40 to 70℃

- Bluetooth 5.0, pre-flashed MiniBeacon Plus software supports broadcasting iBeacon and Eddystone simultaneously

BLE Wi-Fi Smart Hub ibeacon receiver:

G1 Gateway collects the data from iBeacon, Eddystone, BLE sensor and other BLE devices, and then sends to the local TCP server or remote cloud server by HTTP / MQTT / mbed (ARM) protocol over Wi-Fi / Ethernet / Cellular.

Technical Parameter
Item
Value
Remarks
Case Color
White
Other colors can be customized
Battery Model
3.0V
4pcs 1.5V Alkaline battery, total 4400mAh
Operation Voltage
1.8-3.9V
DC
Transmission Power
-30 to +4dBm
Tx power
Transmission Circuit
5.3mA (Max.)
Tested @ 0dBm Tx power, standard version
110mA (Max.)
Tested @ 4dBm Tx power, enhanced version
Transmission Range
200 meters
Tested @ 4dBm Tx power, standard version
500 meters
Tested @ 4dBm Tx power, enhanced version
Antenna
50ohm
On board / PCB Antenna
Accessories
Double adhesive
1pc, high-strength, 3M brand
Net Weight
109.0g
With battery
Size
72 x 72 x23mm
Null

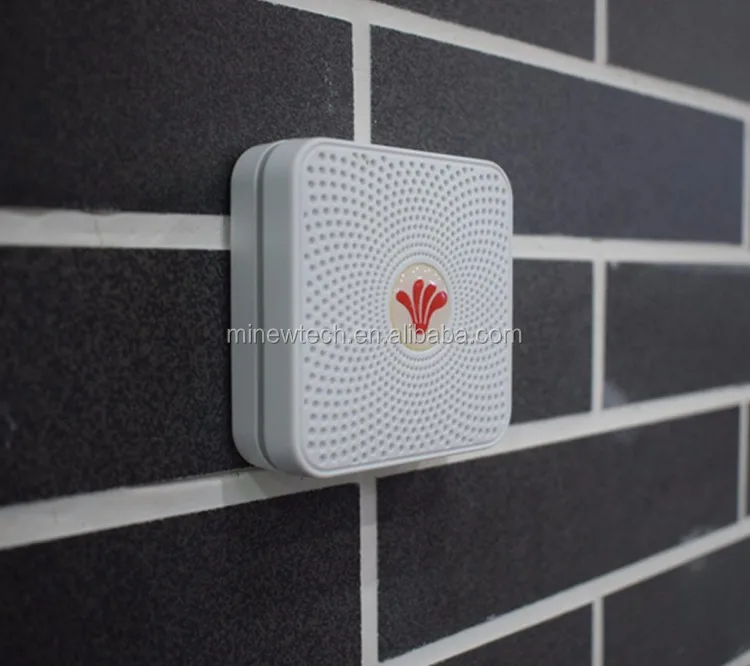

Application

Detailed Images
Packing & Delivery

Delivery
According to our customers requirements, we are willing to handle shipment for our customers, and the shipment fee is needed in this case.

Fast Express are all available here.
Or if our customers have their own Express account, freight forwarder in China, we are happy to contact their Express people or freight forwarder to pick up products from our factory..

Our Company

Founded in 2007, Minew has been engaged in IoT (Internet of Things) field for years and is keeping updated to the market demand all along.

We are an ISO9001:2008 certified manufacturer focusing on RF / Wireless products such as 2.4GHz BLE 4.0 related products.
We focus on designing and manufacturing many different high quality and low cost iBeacons hardware , offering one-stop services include:
1. Schematic design;
2. Mold design;
3. PCB layout;
4. Firmware design;
5. Production and assembling.
Warmly welcome the OEM and ODM projects.

Our Service

- Print your logo on the top of MiniBeacon;
- Programmer your firmware into iBeacon Module;
- Pre-configure the value of parameter before the shippment;
- PCB can be customized if needed;
- Package can be customized if required;
- Prototyping the casing and mold tool design and injection service.

FAQ

Do you provide the technical support to the developers?
Re: SURE. The following technical data and documents will be provided to developers.
1. SDK 2. API 3. Demo APP 4. Configuration APP 5. Instructions

Can I change the password?
Re: Yes, you can use configuration APP to change password by yourself.

Do you have SDK or the source code?
Re: Yes, we will provide you after sample was arrived.

Does MiniBeacon comply with iBeacon standard?
Re: Yes,MiniBeacon has been licensed by ibeacon stamdard program with contact No.iBC-14-00582.
