BLE 4.0 Low Energy nrf52832 Bluetooth Transmitter Module

FOB Reference Price:Get Latest Price
  • >=3 Pieces
    $7.00
Report Suspicious Activity
Overview
Quick Details
Model Number:
MS50SFB BLE 4.0 Low Energy nrf52832 Bluetooth Transmitter Module
Brand Name:
Minew
Place of Origin:
China
Certifications:
BQB, CE, FCC
Transmission Range:
10-60m
Dimension:
20.0 x 12.0 x 2.0 mm
Frequency:
2402 to 2480 MHz
Single power supply:
1.8 -3.9V
Chipset:
nRF52832 (Nordic)
GPIO Quantity:
32
Memory:
512kB Flash and 64kB RAM
Optional antenna types:
PCB antenna, chip antenna, IPEX connector
Operating Temperature range:
-25 to 85 degree Celsius
Supply Ability
Supply Ability:
20000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
MS50SFB BLE 4.0 Low Energy Bluetooth Transmitter Module
80pcs/Tray
4000pcs/Carton
Port
Shenzhen
Lead Time :
In 2 working days after payment
Product Description

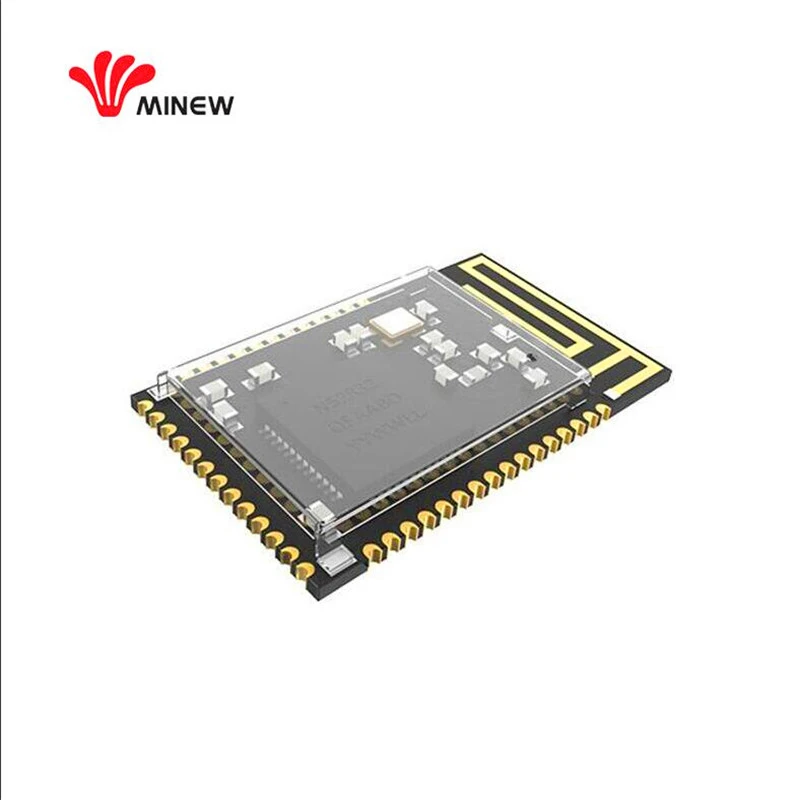

MS50SFB BLE 4.0 Low Energy nrf52832 Bluetooth Transmitter Module

The MS50SFB is a compact small size Bluetooth 5.0 module with ultra-low power consumption and optional antenna types; it is very suitable for the coin cell battery powered applications.

The module is highly integrated that contains all the necessary components from radio to different antenna and a completely implemented Bluetooth protocol stack and pre-flashed UART communication protocol.

Features

• Frequency: 2402 to 2480 MHz
• Max. Output power: +4dBm
• Single power supply: 1.8 – 3.9V
• Range: 10-60 meters
• Chip: nRF52832 (Nordic)
• GPIO Quantity: 32
• 512kB Flash and 64kB RAM

• Module size: 20.0 x 12.0 x 2.0 mm
• NFC type A interface
• ARM Cortex-M4F processor
• Metal shielding with marking
• UART communication protocol (Slave / Master optional)
• 3 optional antenna types: PCB antenna, chip antenna, IPEX connector
• Operating Temperature range: -25 to 85 degree Celsius

Application

• Cycle computer
• Heart rate monitor
• Blood pressure monitor
• Blood glucose mete
• Weighing machine
• Thermometer
• Mobile accessories
• Sports and fitness sensors
• Remote controllers / Toys
• Key fobs and wrist band
• 3D glasses and gaming controller

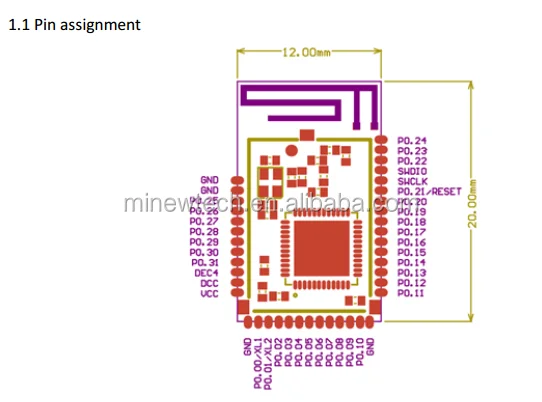

Pin Assignment
Certifications
Packing & Delivery

Packing
Industrial packaging.

samples MS50SFB BLE 4.0 Low Energy Bluetooth Transmitter Module per antistatic bags

80pcs MS50SFB BLE 4.0 Low Energy Bluetooth Transmitter Module per tray.


4000pcs BLE 4.0 Low Energy Bluetooth Transmitter Module per caton


Delivery
According to our customers requirements, we are willing to handle shipment for our customers, and the shipment fee is needed in this case.

Fast Express like DHL,UPS, TNT, FedEx are all available here.
Or if our customers have their own Express account, freight forwarder in China, we are happy to contact their Express people or freight forwarder to pick up products from our factory..

Our Company

     Shenzhen Minew Technologies Co., Ltd is an ISO9001:2008 Management System CertifiedManufacturerlocated in Shenzhen, China. Professional specialized in developing the Bluetooth iBeacon, Bluetooth modules, key-finder and other RF Technology-based creative products and technical services. At present, we have launched lots of various and steady performance ibeacon products, our manufacturer has established 6 production lines for manufacturing iBeacon hardwareproducts, We are Minew Technologies, Your most Reliable Partner.

FAQ

Do you provide the technical support to the developers?
Re: SURE. The following technical data and documents will be provided to developers.
1. SDK 2. API 3. Demo APP 4. Configuration APP 5. Instructions

Can I change the password?
Re: Yes, you can use configuration APP to change password by yourself.

Do you have SDK or the source code?
Re: Yes, we will provide you after sample was arrived.

Does MiniBeacon comply with iBeacon standard?
Re: Yes,MiniBeacon has been licensed by ibeacon stamdard program with contact No.iBC-14-00582.
