C7 Card Beacon RFID Gateway Beacon for IoT

FOB Reference Price:Get Latest Price
$5.00 - $10.00 / Pieces | 3 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
C7
Brand Name:
Minew
Place of Origin:
Guangdong, China
Product name:
Card Beacon RFID
Chipset:
Nordic nRF52832
Battery Type:
Lithium battery, no-replaceable
Battery lifetime:
3 years
Operation voltage:
1.8-3.9v
Transmission range:
100m
Case color:
White
Broadcating content:
ibeacon, eddystone and senosr data
Service:
OEM/ODM
Application:
Emplyee Access and Stuff Management
Supply Ability
Supply Ability:
60000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
C7 Card Beacon RFID Gateway Beacon for IoT package details:
40pcs/box; 30.5*11*7.5cm
400pcs/carton; 32*23*40cm
Port
Shenzhen
Lead Time :
two days for samples shipment
Product Description

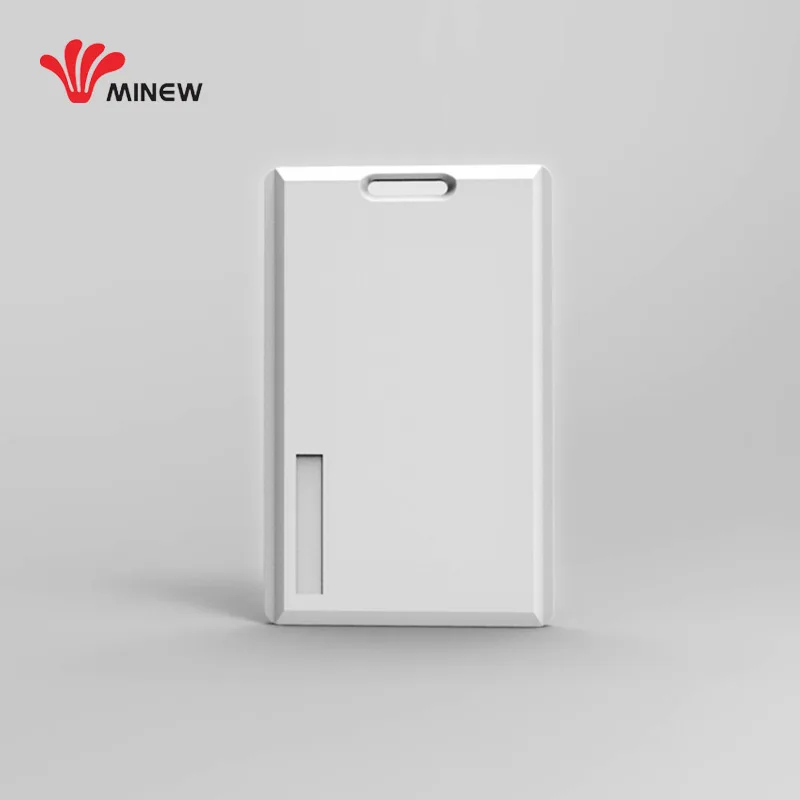

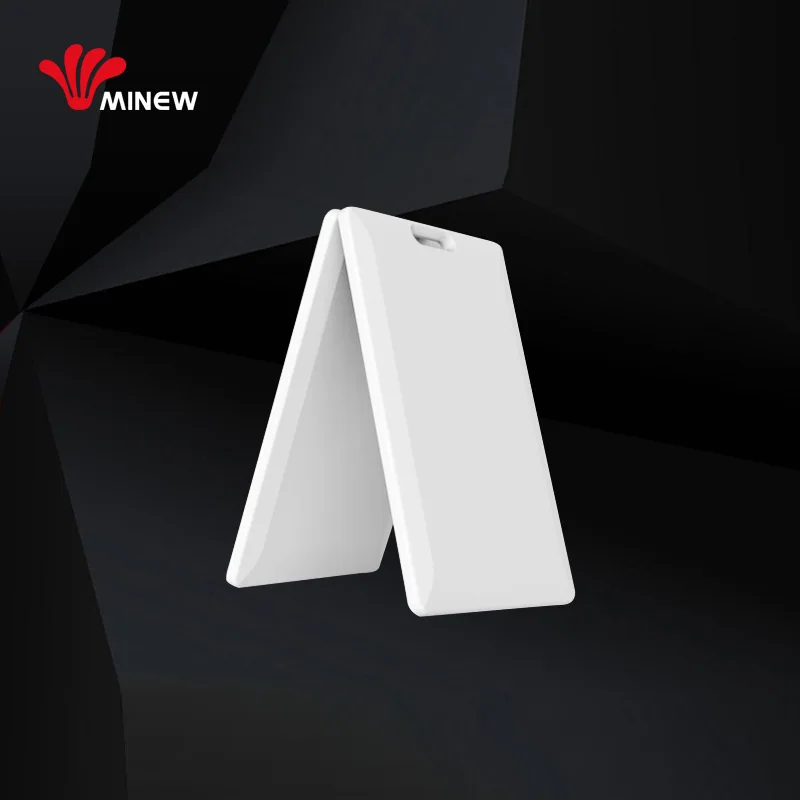

C7 Card Beacon RFID Gateway Beacon for IoT
C7 is a BLE (Bluetooth Low Energy / version smart 5.0 / 2.4GHz) Beacon with NFID optional. Cover the range to Dia 100m and reduce the power comsuption to 35uA average only

As it is an active tag, it has a battery(dismountable) and been developed to work with iOS 7.0 and Android 4.3+System competible.
It will always broadcast the iBeacon, eddystone frames that you set, you could download our APP " BeaconSET+ " setting the parameters.

Technical Datas:
Working frequency: ISM frequency 2.400~2.483GHz
Broadcast range: over 100 m
Battery capacity: could last over 3 years
Features: Ultra thin, portable, inside NFID optional.
SDK: available
Average power consuption: 35uA

Advantages:
delicate shape, ibeacon eddystone compatible, Google nearby
Thin
3 years Long-time working endurance
IP67 waterproof
Use ultra-low power consumption chipset nRF52832 with Cortex -M4F CPU
Excellent security mechanism
Support the customized service such as firmware, logo and other

Customize service

- Print your logo on the top of MiniBeacon;
- Programmer your firmware into iBeacon Module;
- Pre-configure the value of parameter before the shippment;
- PCB can be customized if needed;
- Package can be customized if required;
- Prototyping the casing and mold tool design and injection service.

Specificaiton of C7 Card Beacon RFID Gateway Beacon for IoT
Item
Value
Remarks
Case color
White
Other colors can be customized
Battery Model
Lithium battery, non-replaceable
1pc x 3.7v
Operation voltage
1.8-3.9V
DC
Transmission circuit
4.5mA (Max.)
Tested at 0dBm transmission power
Transmission range
100meters
Maximum
Antenna
50ohm
On board / PCB Antenna
Accessories
Double adhesive
1pc, high strength, 3M brand
Net weight
18.0g
With battery
Size
90*60*4mm
Null
More Products you may like

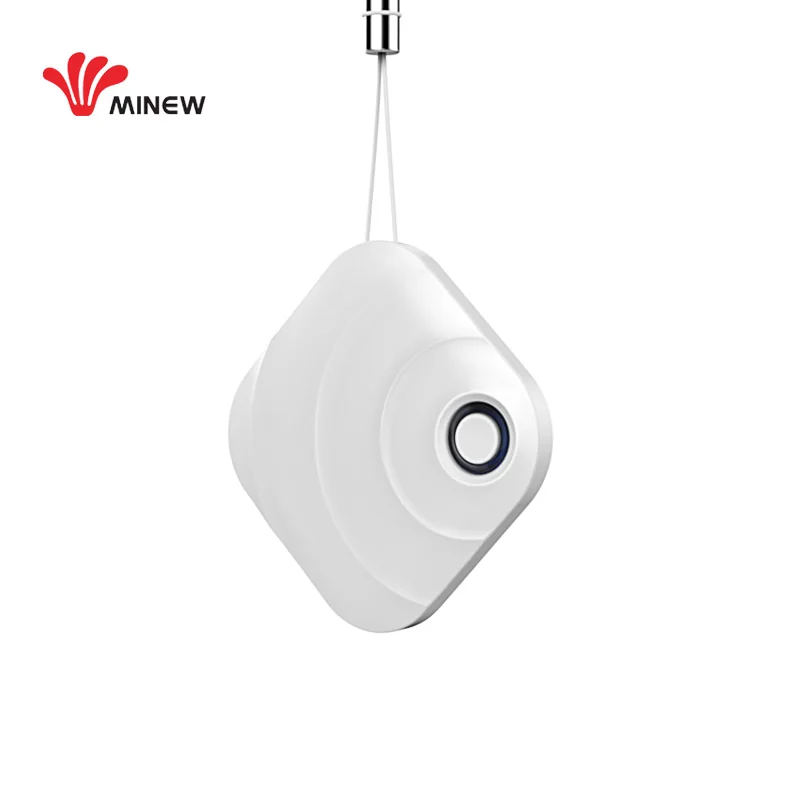

F4 keyfinder

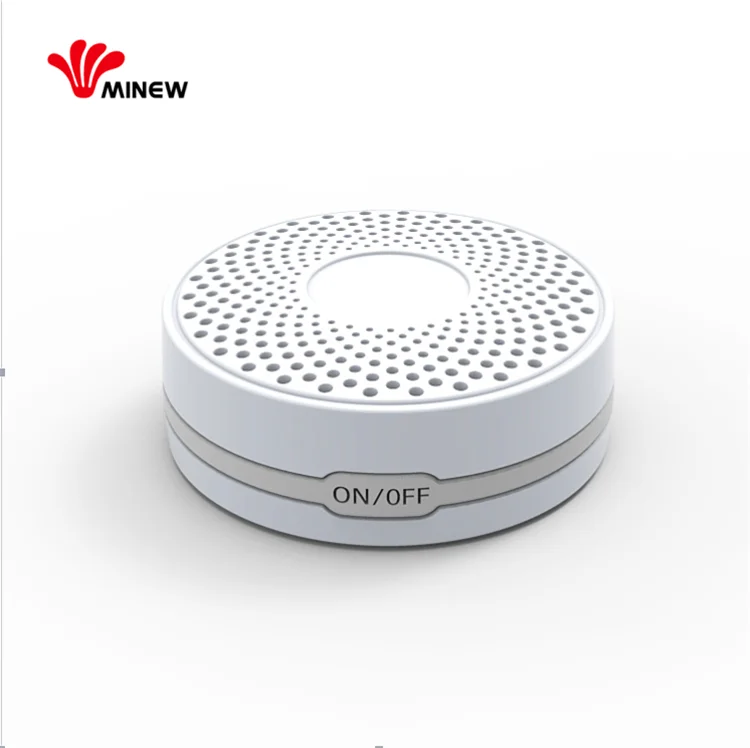

IoT gateway

i7 Rock beacon

Applications
Assets/ Staff Management
--C7 eddystone/ibeacon broadcasts and transmits 2.4GHz radia signals at the regular and adjustable intervals.

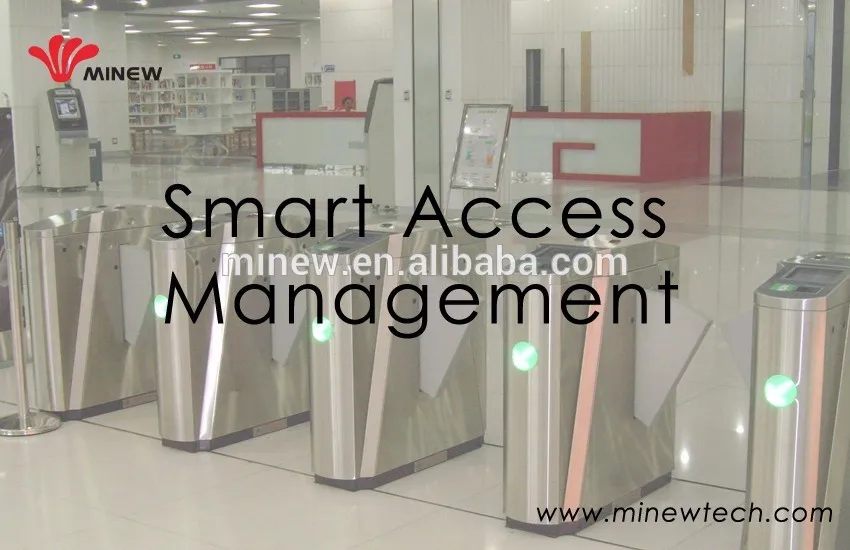

Access Management
--NFID.

Accurate Indoor Location
--C7 is able to detect distance even calculate its position within the range.

Company Information

Our Advantages:

Minew specialized in IoT (Internet of Things) field, focus on high quality beacon device development, from the design, manufacture to sale. We established since 2007 and is the leading IoT related manufacture now.
Via providing smart devices and IoT solutions, we serve to optimize customers' lives, works and businesses, improving efficiency and convenience.
We have/certificated:
IOS9001:2008 Quality Management System
Professional R&D team, sales team and effective production line
CE, FCC, RoHs, ANATEL, Japan Radio Frequency Permit


For more please have a visit at our website: https://minew.en.alibaba.com

Certifications
Packing & Delivery

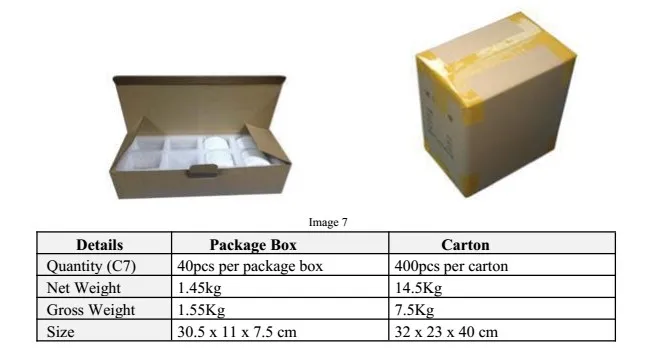

Packing information

Delivery

1.Delivery will be arranged by DHL/UPS/Fedex/TNT/EMS, normally it will take 3-7 work days.
2.We can also help you ship the goods by air line, then you need to go to Air port totake it, it takes about 2-7 days to arrive.
3.If you have your own Express account, we can help call them to pick up the goods in our company.

FAQ

Do you provide the technical support to the developers?
Re: SURE. The following technical data and documents will be provided to developers.
1. SDK 2. API 3. Demo APP 4. Configuration APP 5. Instructions

Can I change the password?
Re: Yes, you can use configuration APP to change password by yourself.


Do you have SDK or the source code?
Re: Yes, we will provide you after sample was arrived.

Does MiniBeacon comply with iBeacon standard?
Re: Yes,MiniBeacon has been licensed by ibeacon stamdard program with contact No.iBC-14-00582.
