manufacturer wholesale 3G/4G bluetooth iot device industrial ble to wifi gateway

FOB Reference Price:Get Latest Price
$1.00 - $60.00 / Pieces | 3 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
G1
Brand Name:
Minew
Place of Origin:
Guangdong, China
Core Tech:
BLE5.0/WiFi IEEE 802.11 b/g/n
Wifi:
Up to 150 Mbps PHY data rate
Number of Selectable Sub channels:
14 channels
Protocol:
TCP/HTTP/MQTT/mbed(ARM)
Light strip:
Indicator
Input:
DC 5.0V, 1A, micro-USB
Working temperature:
-25℃ to 65℃
Cover range:
300m
Power supply:
Powered by Micro-USB / PoE
Firmware upgrade:
Over-the-Air
Product Certification Verified
CE Certified.
FCC Certified.
Supply Ability
Supply Ability:
10000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
manufacturer wholesale 3G/4G bluetooth iot device industrial ble to wifi gateway
Standard Package Box: 23*16*5 cm, 1 pc per package box.
Standard iBeacon Package Carton:32 x 23.5 x 40 cm, 12pcs per outside carton.
Port
Shenzhen
Product Description

manufacturer wholesale 3G/4G bluetooth iot device industrial ble to wifi gateway

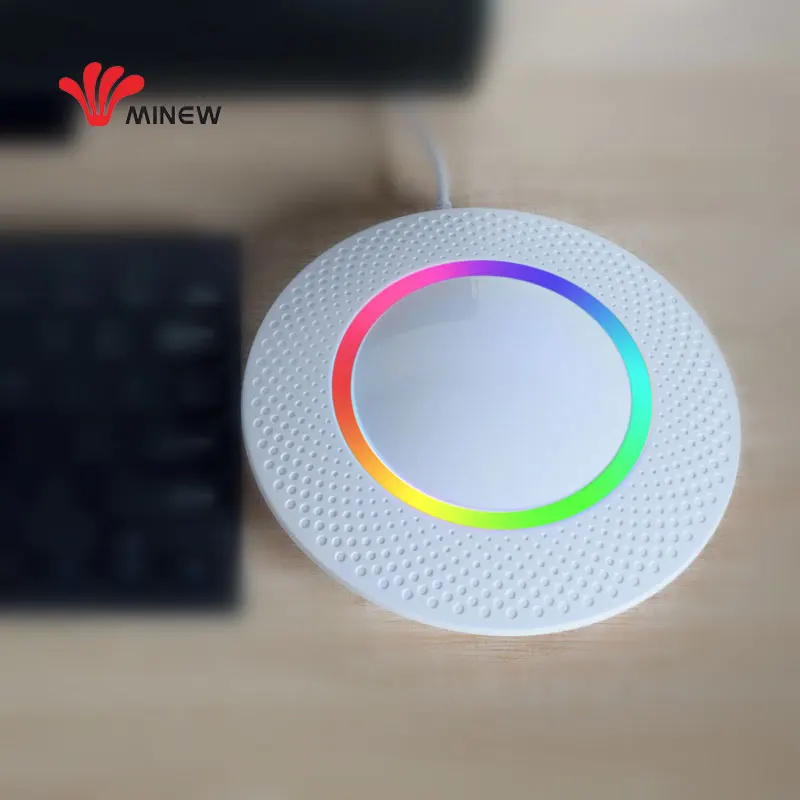

G1 is a WiFi/Bluetooth Gateway used to manage the wireless BLE devices, like beacons. Cover the range to 300m and with the power supply by DC adaptor or POE.
You could set the gateway via AP mode or a simple Web UI


BLE:
- Bluetooth 5.0 hardware nRF52832
- With a power amplifier
- With 3dBi flexible FPC antenna
- 300 meters range in open space
- Rx sensitivity -108dBm
- Bi-directional (reads data / sends command)


WiFi:
- Up to 150 Mbps PHY data rate
- With 3dBi flexible FPC antenna
- 100 meters range in open space
- 1T1R 2.4GHz frequency band
- IEEE 802.11b/g/n
- Web based UI for configuration
- Connects to the local server or remote cloud

General:
- Input: DC 5.0V, 1A, micro-USB
- Supports 802.3af PoE standard
- Supports firmware upgrade Over-the-Air
- Operating temperature: -25℃ to 65℃
- Reads multiple BLE devices in the same time
- Supports TCP/HTTP/MQTT/mbed(ARM)
- Built-in RTC and NTP support
- RGB LED string as the status indicator
- Based on OpenWrt 15.05

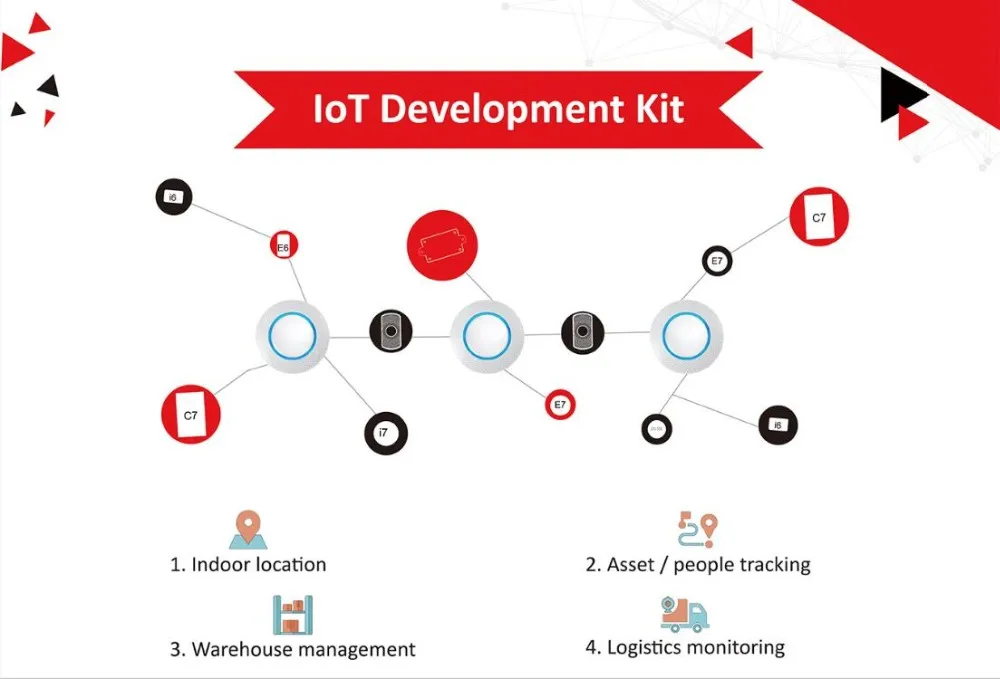

Applications
Ble Wifi Gateway POE Wireless Networking Equipment G1 for IoT

1. iBeacon / Eddystone / other BLE Beacon receiver
2. BLE sensor reader / receiver
3. Asset tracking
4. Access control management
5. Advertisement promotion
6. Indoor location and position
7. Industrial automation

Related Products

S1 temperature & humidity sensor

E7 waterproof accelerometer sensor

E6 light sensor beacon
Company Information
Founded in 2007,Minew has been engaged in IoT (Internet of Things) field for years and is keeping updated to the market demand all along.We are an ISO9001:2008 certified manufacturer focusing on RF / Wireless products such as 2.4GHz BLE 4.0/5.0 related products.We focus on designing and manufacturing many different high quality and low cost iBeacons hardware , offering one-stop services include:

1. Schematic design;
2. Mold design;
3. PCB layout;
4. Firmware design;
5. Production and assembling.

Warmly welcome the OEM and ODM projects.

Trade Show
Our Service

- Print your logo on the top of bluetooth temperature and humidity sensor;
- Programmer your firmware into iBeacon Module;
- Pre-configure the value of parameter before the shippment;
- PCB can be customized if needed;
- Package can be customized if required;
- Prototyping the casing and mold tool design and injection service.

Certifications
Packing & Delivery

Minew manufacturer wholesale best price bluetooth beacon industrial ble wifi iot gateway device


For samples: we would send samples via DHL Express within about 2 days after payment, then you would receive them in about 4 to 5 days.


For orders: bulk orders usually take about 2 to 3 weeks after payment received

Details
Package Box
Carton
Quantity (G1)
1pc
12pc
Size
23*16*5cm
32*23.5*40cm
Gross Weight
0.5kg
6kgs
FAQ

Do you provide the technical support to the developers?
Re: SURE. The following technical data and documents will be provided to developers.
1. SDK 2. API 3. Demo APP 4. Configuration APP 5. Instructions

Can I change the password?
Re: Yes, you can use configuration APP to change password by yourself.


Do you have SDK or the source code?
Re: Yes, we will provide you after sample was arrived.

Does MiniBeacon comply with iBeacon standard?
Re: Yes,MiniBeacon has been licensed by ibeacon stamdard program with contact No.iBC-14-00582.
