Long range Accelerometer Sensor BLE beacon cards

FOB Reference Price:Get Latest Price
$1.00 - $10.00 / Pieces | 3 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 5 Negotiable
Customization:
Customized logo (Min. Order: 100 Pieces)
Report Suspicious Activity
Overview
Quick Details
Model Number:
C7
Brand Name:
Minew
Place of Origin:
Guangdong, China
Chipset:
Nordic nRF52 series chip
Core tech:
Bluetooth Low Energy 5.0
Battery type:
Lithium battery, no-replaceable
Battery lifetime:
3 years
Firmware upgrade:
Over-The-Air
Case color:
White
Transmission range:
100m

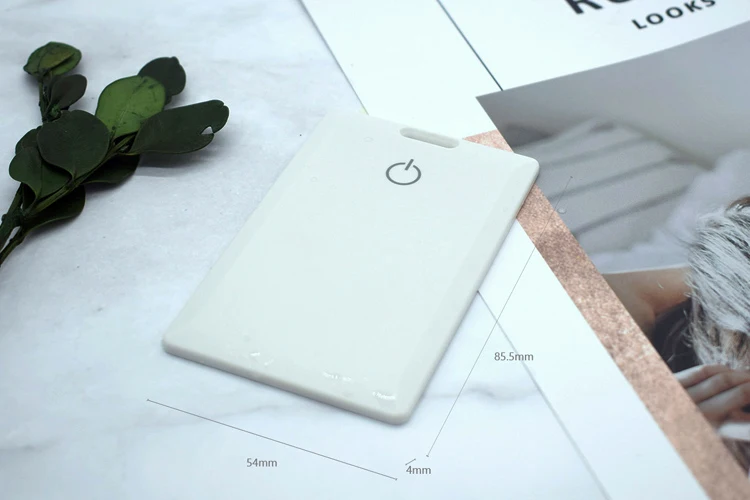

Product size:
85*55*4mm
Features:
iBeacon, Eddystone, sensor data
Certification:
CE FCC
Product Certification Verified
CE Certified.
Supply Ability
Supply Ability:
20000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Long range Accelerometer Sensor BLE beacon cards package details:
80 pieces per package box
800 pieces per carton
Port
Shenzhen
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 5 To be negotiated



What is an iBeacon?

An iBeacon is a low-cost, low-power transmitter which can be detected by mobile devices.

How Do iBeacons Work?

Each iBeacon must be setup with a location-specific ID (UUID), latitude and longitude. Each UUID must be
registered within your app. Apple supports awareness of up to 20 iBeacons at any given time. Attributing
based on your iBeacons is a snap! Just log into the iBeaconSET to add or edit.







Product Description



Long range Accelerometer Sensor BLE beacon cards
C7 is a BLE (Bluetooth Low Energy / version smart 5.0 / 2.4GHz) Beacon with NFID optional. Cover the range to Dia 100m and reduce the power comsuption to 35uA average only

As it is an active tag, it has a battery(dismountable) and been developed to work with iOS 7.0 and Android 4.3+System competible.
It will always broadcast the iBeacon, eddystone frames that you set, you could download our APP " BeaconSET+ " setting the parameters.

Technical Datas:
Working frequency: ISM frequency 2.400~2.483GHz
Broadcast range: over 100 m
Battery capacity: could last over 3 years
Features: Ultra thin, portable, inside NFID optional.
SDK: available
Average power consuption: 35uA

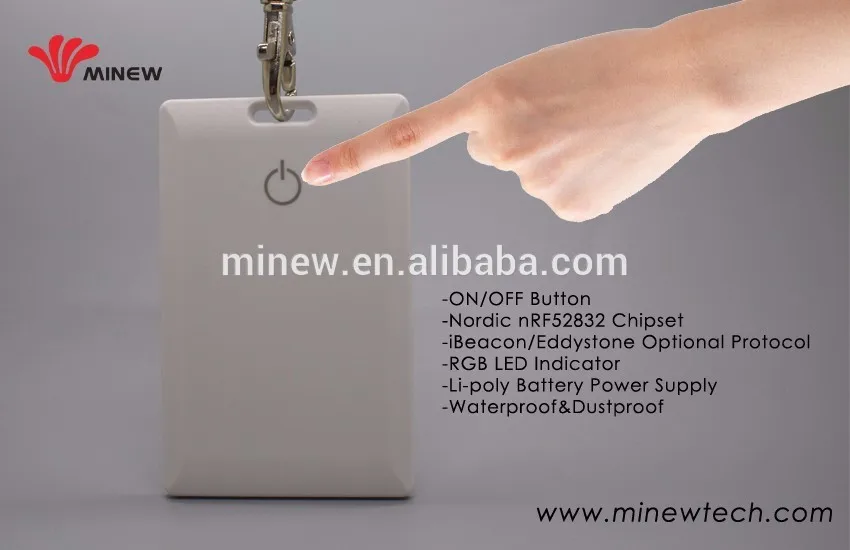

Advantages:
delicate shape, ibeacon eddystone compatible, Google nearby
Thin
3 years Long-time working endurance
IP67 waterproof
Use ultra-low power consumption chipset nRF52832 with Cortex -M4F CPU
Excellent security mechanism
Support the customized service such as firmware, logo and other



Technical Specification of Long range Accelerometer Sensor BLE beacon cards



Item

valueRemarks
Case colorWhite

Other colors can be customized

Battery Model

Lithium battery, non-replaceable

1pc x 3.7v

Operation Voltage

1.8-3.9V

DC

Transmission Current

4.5mA (Max.)

Tested at 0dBm transmission power

Transmission Range

100 meters

Maximum

Antenna

50ohm

On board / PCB Antenna

Accessories

Double adhesive

1pc, high strength, 3M brand

Net weight

18.0g

With battery

Size90*60*4mm

Null





More Product Pictures









Applications of Long range Accelerometer Sensor BLE beacon cards



Assets/ Staff Management
--C7 eddystone/ibeacon broadcasts and transmits 2.4GHz radia signals at the regular and adjustable intervals.

Access Management
--NFID.

Accurate Indoor Location
--C7 is able to detect distance even calculate its position within the range.







Application 2

You could also use this product together with our IoT gateway G1. G1 is desined as a cloud service and it coud collect the data signal broadcasted from the beacon and then store the data for deployers' later use.







Packaging & Shipping



  For samples: we would send samples via DHL Express within about 2 days after payment, then you would receive them in about 4 to 5 days.

          For orders: bulk orders usually take about 2 to 3 weeks after payment received



Details

Box

Carton

Quantity (C7)

80pcs

800

Net Weight

1.45Kgs

14.5Kgs

Gross Weight

1.55Kgs

16.5Kgs

Size

31 x 11 x 8 cm

32 x 23 x 40 cm





Company Information


About our company and factory

Founded in 2007,Minew has been engaged in IoT (Internet of Things) field for years and is keeping updated to the market demand all along.
We are an ISO9001:2008 certified manufacturer focusing on RF / Wireless products such as 2.4GHz BLE 4.0 related products.
We focus on designing and manufacturing many different high quality and low cost iBeacons hardware , offering one-stop services include:


1. Schematic design;
2. Mold design;
3. PCB layout;
4. Firmware design;
5. Production and assembling.
Warmly welcome the OEM and ODM projects.







Certification







Our Services


1. Print your logo on the top of MiniBeacon;
2. Programmer your firmware into iBeacon Module;
3. Pre-configure the value of parameter before the shippment;
4. PCB can be customized if needed;
5. Package can be customized if required;
6. Prototyping the casing and mold tool design and injection service.



FAQ



Do you provide the technical support to the developers?
Re: SURE. The following technical data and documents will be provided to developers.
1. SDK 2. API 3. Demo APP 4. Configuration APP 5. Instructions



Can I change the password?
Re: Yes, you can use configuration APP to change password by yourself.



Do you have SDK or the source code?
Re: Yes, we will provide you after sample was arrived.



Does MiniBeacon comply with iBeacon standard?
Re: Yes,MiniBeacon has been licensed by ibeacon stamdard program with contact No.iBC-14-00582.
