Long lifetime round shape iBeacon for advertising

FOB Reference Price:Get Latest Price
$7.00 - $11.00 / Pieces | 3 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
E9
Brand Name:
Minew
Place of Origin:
Guangdong, China
Product name:
Bluetooth Beacon
Color:
Black
Chipset:
Nordic NRF52
Transmission Range:
100 meters
Waterproof Level:
IP67
Size:
49*66*17.5mm (diameter 49mm)
Antenna:
50ohm
Battery Model:
CR2477
Certification:
CE & FCC
Application:
Indoor Location
Supply Ability
Supply Ability:
50000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
MiniBeacon plus firmware iBeacon and Eddystone:
20pcs E9 ibeacon and eddystonen per packing box
200pcs E9 ibeacon and eddystone per carton
Port
Shenzhen
Product Description

The DearBeacon E9 is a new generation beacon that loaded Bluetooth 5.0 hardware platform and MiniBeacon Plus intelligence software. E9 has a smart rotatable mechanical design for the housing that makes the coin battery replaceable and IP67 waterproof grade combination perfectly. Moreover, E9 can be fixed by the screw and 3M adhesive.

E9 DearBeacon advertises standard iBeacon and Eddystone (UID,URL,TLM) data packet simultaneously. The user can configure the E9 DearBeacon via configuration app BeaconSET+ as well.


Features:


-IP67 waterproof;
-Replaceable coin battery 1000mAh
-Advertising iBeacon & Eddystone
-Unique MAC address (ITU)
-Bluetooth 5.0 chipset nRF52 series
-The max. 100 meters advertising distance
-Internal power ON/OFF push button
-Tough enclosure and screw fixing


Electronice Parameters:

Item
Value
Remarks
Case Color
Black
Other colors can be customized
Battery Model
1*CR2477
3.0 V, 1000mAh
Operation  Voltage
1.8-3.9V
DC
Transmission Current
5.3mA ( Peak current)
Tested at 0dBm transmission power
Transmission range
100meters
Maximum
Waterproof Level
IP67
Tested at 1 meter water
Antenna
50ohm
On board /PCB Antenna
Size
φ49*66*17.5mm
49mm diameter, 66mm length, 17.5mm height

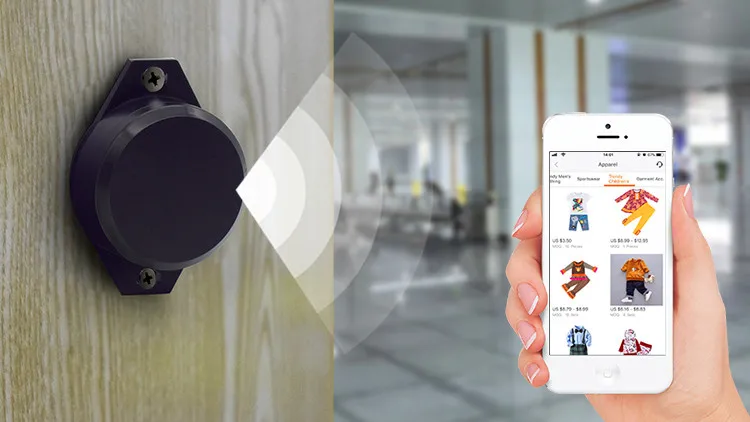

Application of E9 BLE Waterproof Beacon

MonitoringIn retail: In retail, a department store uses monitoring to analyze in-store behavior of their customers, assess the effectiveness of marketing programs and promotions, and learn about their staff's utilization.


Tracking:NDOORS: A hospital group can provide physicians with wearables that report their location, enabling all doctors to be tracked inside the buildings as well as in transit to other facilities.


Proximity:

1.Museum : A visitor at a museum automatically receives information about an exhibit when standing in front of it.
2.Check in: Guests "check in" automatically when entering a hotel lobby, and are subsequently directed to their assigned rooms. No standing in line at the registry, and no wait.

3. oupons: Customers at a retail establishment receive coupons for promotional items as they enter the store

Config App

You can download configuration APP BeaconSET+ in App store or google play.

Related Products

E8 Accelerometer sensor

 E6 light sensor


S1 temperature & Humidity sensor

Our Company

Founded in 2007,Minew has been engaged in IoT (Internet of Things) field for years and is keeping updated to the market demand all along.We are an ISO9001:2008 certified manufacturer focusing on RF / Wireless products such as 2.4GHz BLE 4.0 related products. We focus on designing and manufacturing many different high quality and low cost iBeacons hardware , offering one-stop services include:

1. Schematic design;
2. Mold design;
3. PCB layout;
4. Firmware design;

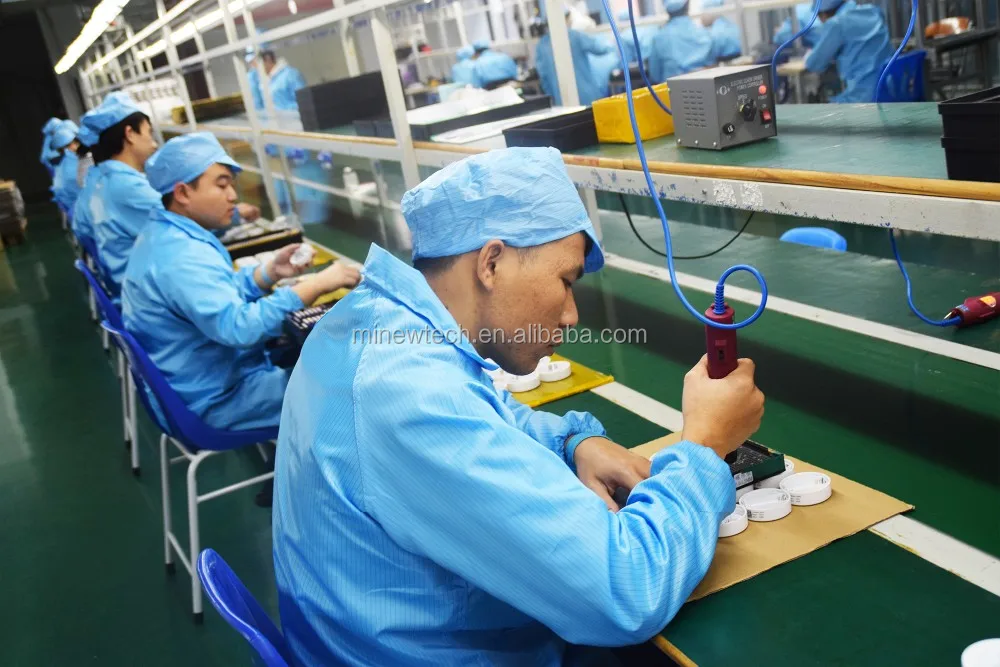

5. Production and assembling.
Warmly welcome the OEM and ODM projects.

Certifications

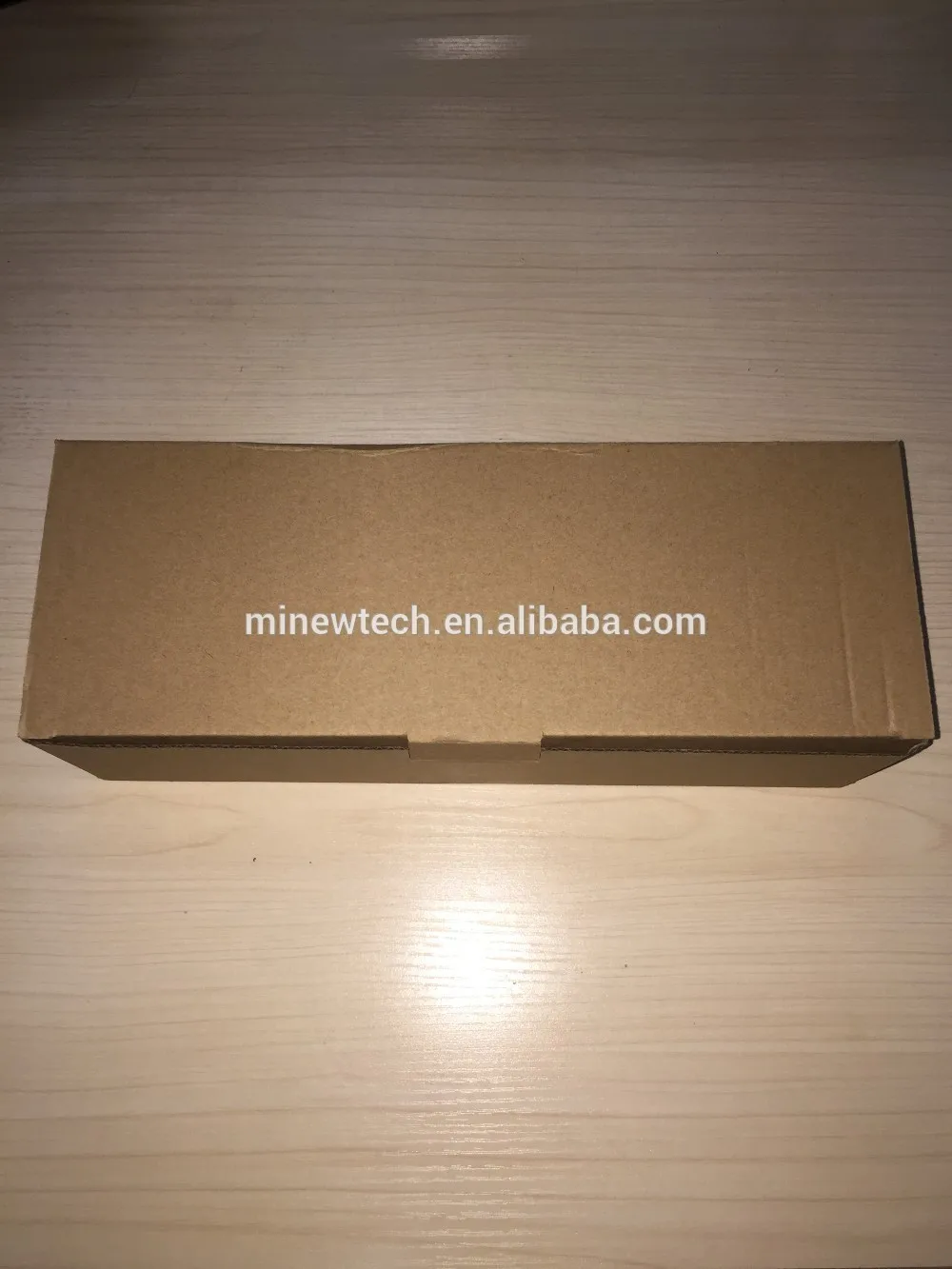

Packing & Delivery

Delivery

According to our customers requirements, we are willing to handle shipment for our customers, and the shipment fee is needed in this case. Fast Express like DHL,UPS, TNT, FedEx are all available here.  Or if our customers have their own Express account, freight forwarder in China, we are happy to contact their Express people or freight forwarder to pick up products from our factory.

FAQ

Do you provide the technical support to the developers?
Re: SURE. The following technical data and documents will be provided to developers.
1. SDK 2. Firmwork 3. Demo APP 4. Configuration APP 5. Instructions

Can I change the password?
Re: Yes, you can use configuration APP to change password by yourself.

Do you have SDK or the source code?
Re: Yes, we will provide you after sample was arrived.

Does MiniBeacon comply with iBeacon standard?
Re: Yes,MiniBeacon has been licensed by ibeacon stamdard program with contact No.iBC-14-00582.
