Bluetooth 5.1 nrf52811 nrf52811 module AoA AoD supported

FOB Reference Price:Get Latest Price
$3.00 - $8.00 / Pieces | 3 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 15 >15
Est. Time(days) 3 Negotiable
Customization:
Customized logo (Min. Order: 10000 Pieces)
Customized packaging (Min. Order: 5000 Pieces)
Report Suspicious Activity
Overview
Quick Details
Model Number:
MS50SFA1
Brand Name:
Minew
Place of Origin:
Guangdong, China
Chipset:
nRF52811
Antenna:
PCB/Chip antenna
Certification:
FCC,CE
GPIO:
13
Range:
10-60M
Bluetooth version:
5.0/5.1
Flash Memory:
512KB/192KB
Sensitivity(Rx):
96dBm
Transmission Power:
-40~+4dBm
Current(TX):
0dBm-5.3mA/4.6mA
Product Certification Verified
CCC Certified.
Supply Ability
Supply Ability:
20000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
850pcs/reel and the reel packed by Aluminum bag via vacuum
Port
Shenzhen
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 15 >15
Est. Time(days) 3 To be negotiated

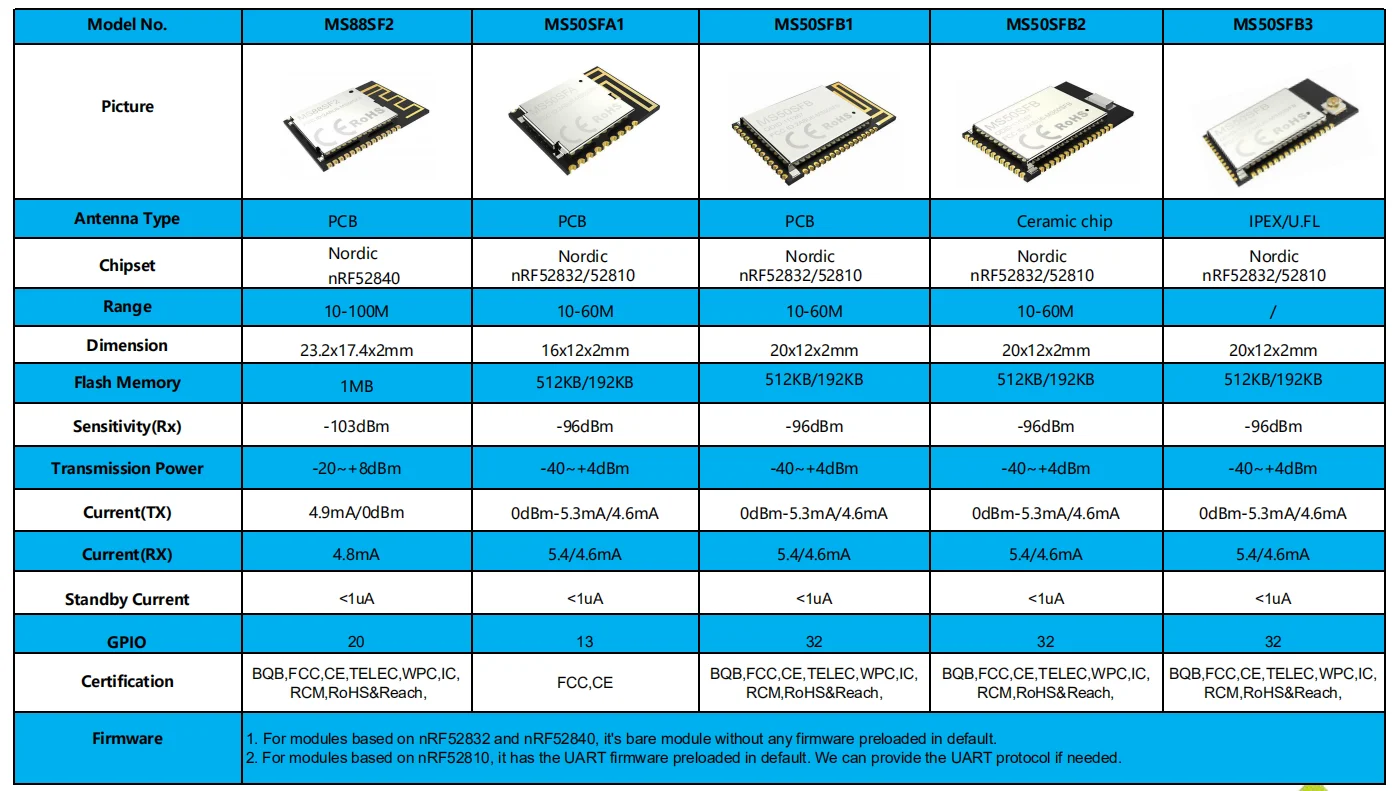

Module Guide List
Product Description

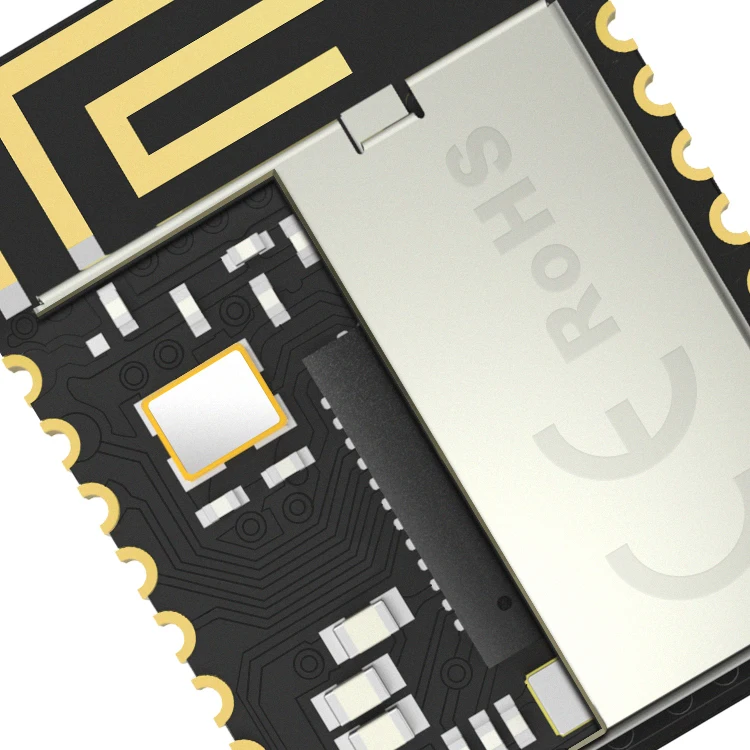

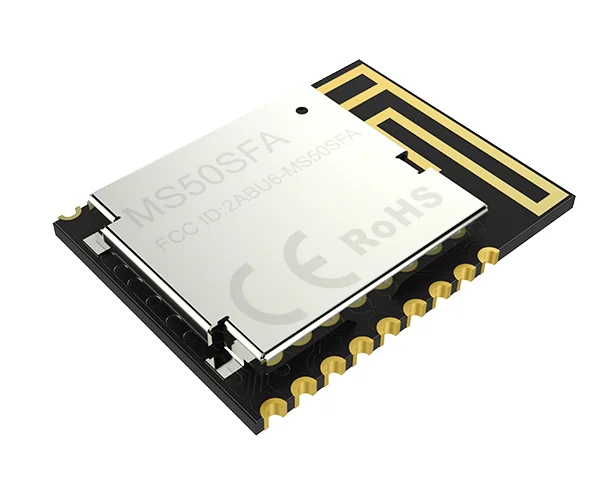

Bluetooth 5.1 module with supports AoA AoD

The MS50SFA1 is based on Nordic nRF52832/nRF52810 and it is a compact and very small size Bluetooth 5.0 module with ultra-low power consumption and optional antenna types; Basically, it lower the cost of building the network nodes.


Features


Frequency:

Max. Output power:
Single power supply:
Range:
Chip:

GPIO Quantity:
Module size:

Antenna types:

Operating Temperature range:

 2402 to 2480 MHz

+4dBm
 1.8 – 3.9V
10-60 meters
nRF52810 /nRF52832 (Nordic)

13
15.8 x 12.0 x 2.0 mm

PCB antenna

 -25 to 85 degree Celsius

192kB Flash and 24kB RAM (nRF52810)

ARM Cortex-M4F processor

Metal shielding with marking

UART communication protocol (Slave / Master optional)


Application

Medical Devices

Heart rate monitor

Blood pressure monitor

Blood glucose meter

Thermometer


Sports Facilities

Weighing machine

Sports and fitness sensors

Electrical Devices

3D glasses and gaming controller

Mobile accessories

Remote controllers / Toys

Electronic devicesCycle computer

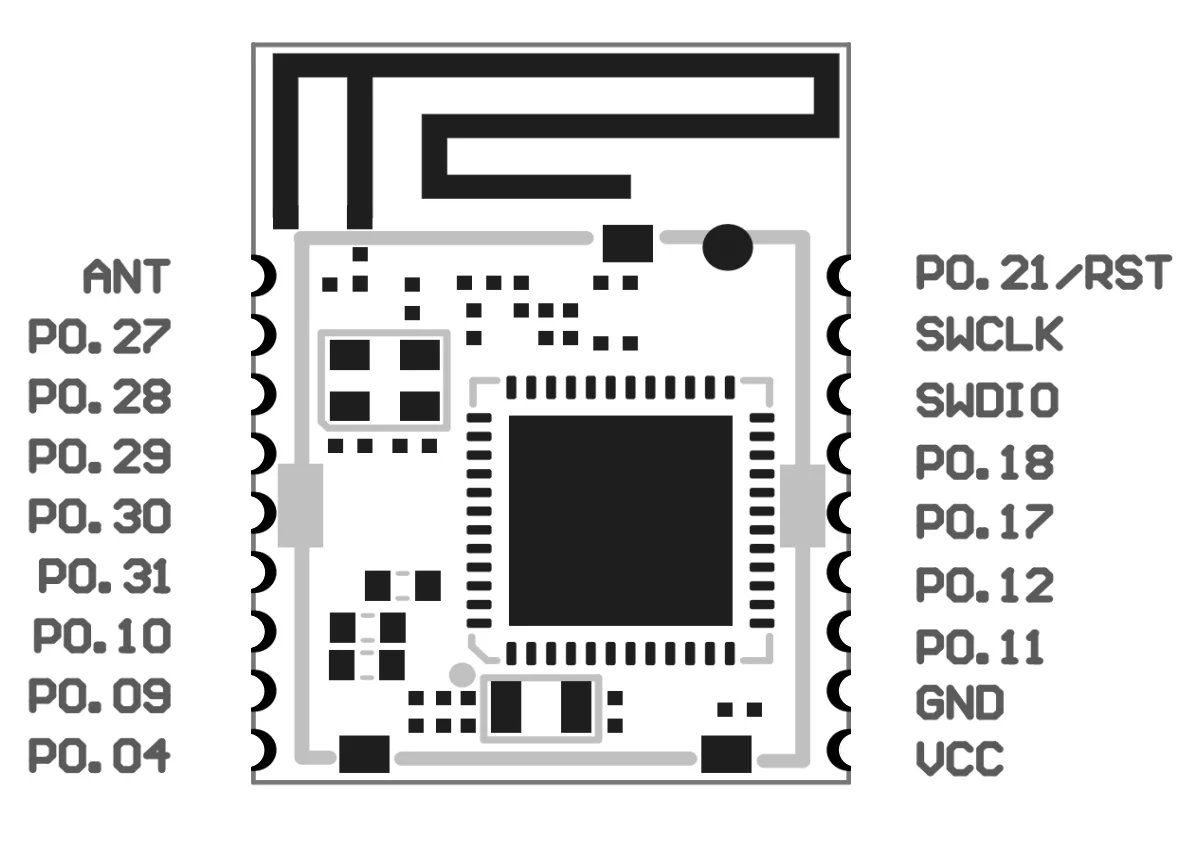

Pin description


Pin description

The definiton of GPIO can refer to Nordic chipset specication of nRF52810 and nRF52832







Physical dimension

Company profile
SHENZHEN MINEW TECHNOLOGIES CO LTD--Since 2007

MINEW has been focusing on developing and manufacturing iBeacon, bluetooth key finder and other RF technology-based creative products and technical services.
As a professional factory, Minew has got the ISO9001:2008 certification with the growing R&D platform.
All of products have been approved by CE, FCC, RoHS and Bluetooth QDID/EPL certifications.
Minew can meet your requirements based on strong R&D capability and production capability, such as OEM, ODM and Special needs.
Our Service
OEM/ODM/EMS Service
1. Technical assistance and consultation service;
2. Schematic design and PCB hardware development;
3. Logo/brand printing service;
4. Certification Service,such as FCC,CE,TELEC,WPC;
5. Firmware development and pre-load in the factory;
6. Fast prototyping service;
7. Package design and making service
8. Production and assembly service;
