Thread Zigbee z-wave bluetooth module based on nRF52840

FOB Reference Price:Get Latest Price
$3.99 - $6.99 / Pieces | 3 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 200 201 - 10000 >10000
Est. Time(days) 1 15 Negotiable
Customization:
Customized logo (Min. Order: 10000 Pieces)
Customized packaging (Min. Order: 5000 Pieces)
Report Suspicious Activity
Overview
Quick Details
Model Number:
MS88SF2
Chipset:
nRF52840
Certification:
BQB,FCC,CE,IC,TELEC,RCM,WPC,RoHS&Reach
Size:
23.2x17.4x2mm
Bluetooth version:
5.0
Chip:
PCB
Distance:
10-100M
Weight:
1.1g
Features:
USB interface
Flash Memory:
1MB
GPIO:
20
Place of Origin:
Guangdong, China
Brand Name:
Minew
Supply Ability
Supply Ability:
30000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
650PCS/REEL
All reel are packed by Aluminum bag via vacuum
Port
SHENZHEN
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 200 201 - 10000 >10000
Est. Time(days) 1 15 To be negotiated
Module Guide List
Product Description

--Powerful nRF52840 Module-- mesh networking supported.

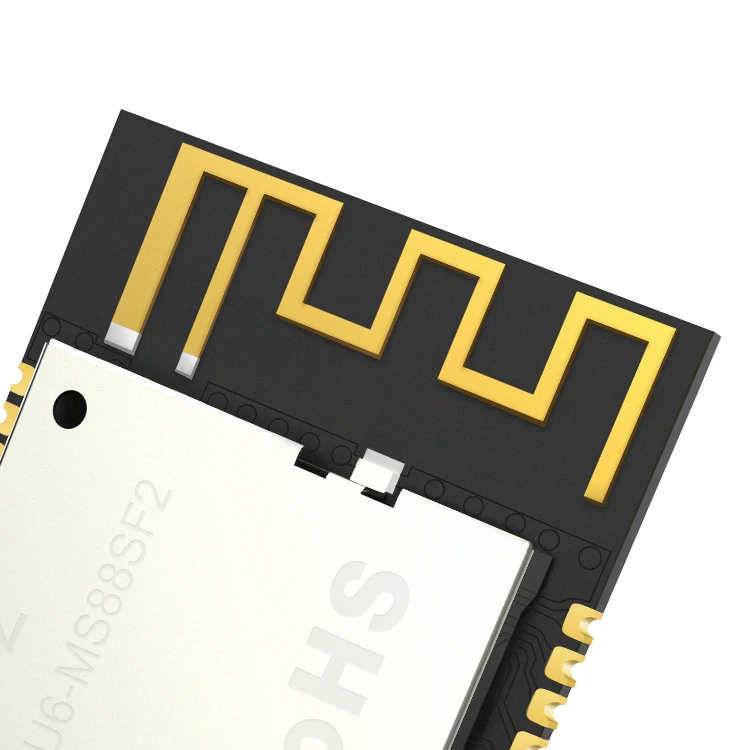

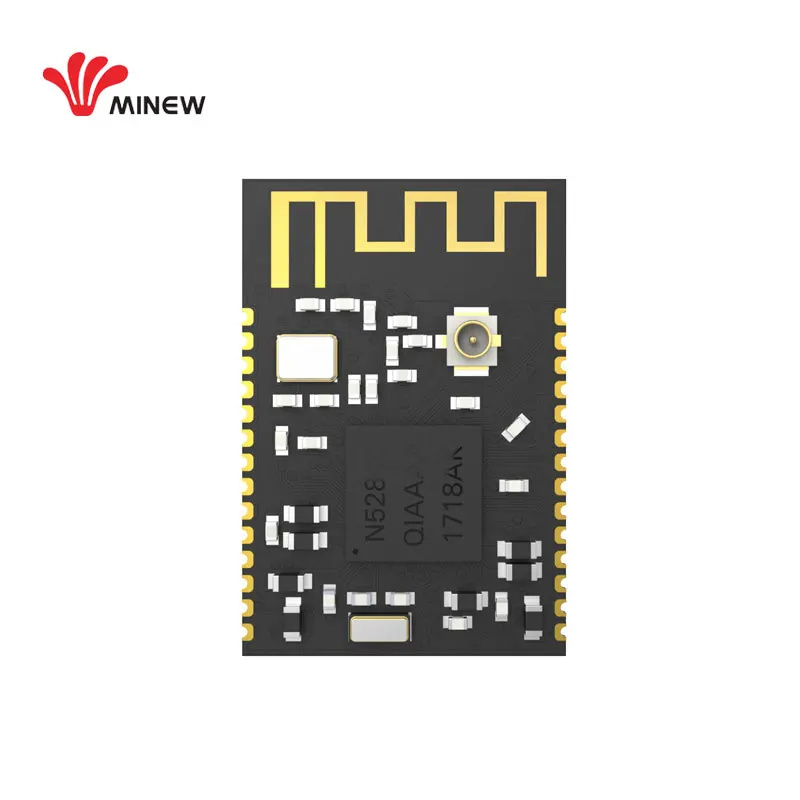

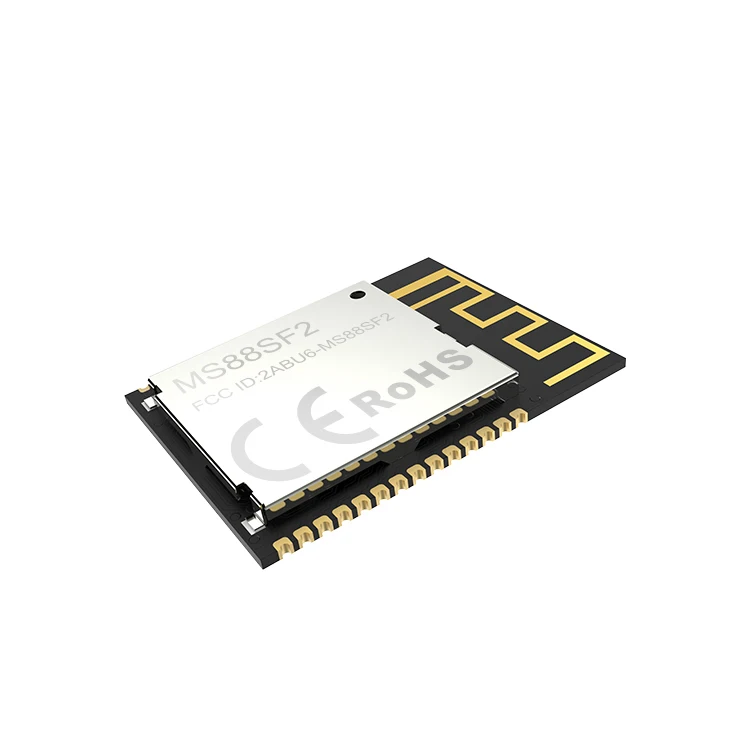

With feature of advanced, ultra low power consumption, highly-flexible, MS88SF2 is a multiprotocol SoM for mesh embedded systems. Newest Chipset nRF52840 can support Bluetooth 5.0 and IEEE 802.15.4, that is Zigbee and Thread. With  an ARM® Cortex™-M4F CPU, integrated 2.4GHz transceiver and PCB antenna, MS88SF2 is much easier to reduce the development costs and making faster speed.


Pin description
Pin
Type
Description
VDD











Power
Power Supply
VDDH
Power
Power supply,2.5V-5.5V
GND
Power
Ground
SWDIO
Digital I/O
System reset (active low). Hardware debug and
D-
Digital I/O
USB D-
D+

Digital I/O
USB D+
P 0.13
Digital I/O
General purpose I/O
P 0.15
Digital I/O
Digital I/O General purpose I/O
P 0.20
Digital I/O
General purpose I/O
P 0.22
Digital I/O
P 0.22 Digital I/O General purpose I/O
P 0.24
Digital I/O
General purpose I/O
P 0.08
Digital I/O
General purpose I/O
P 0.06
Digital I/O
General purpose I/O
P 0.26
Digital I/O
General purpose I/O
SWCLK


Digital input
(debug)



Hardware debug and flash programming I/O
Features
Frequency:

2400 to 2483 MHz

Max. Output power:




+8dBm
Single power supply:


1.8 – 3.9V
Range:
10-100m (BER<0.1%, open space)
Chip:

nRF52840 (Nordic)
GPIO Quantity:

20
Module size:
23.2 x 17.4 x 2.0 mm
Operating temperature range:
-25 to 85 degree Celsius
1MB Flash and 256kB RAM
ARM Cortex-M4F processor
Metal shielding with marking
Supports USB data interfac
50ΩPCB antenna type
IEEE 802.15.4 with Thread and Zigbee support
Application



Medical Devices

Heart rate monitor
Blood pressure monitor
Blood glucose meter
Thermometer



Sport Facilities

Weighing machine
Sports and fitness sensors


Accessories

3D glasses and gaming controller
Mobile accessories
Remote controllers / Toys
Cycle computer
Physical dimension
