Wireless iot hub router MQTT HTTP Supported BLE WiFi gateway bluetooth beacon data detector

FOB Reference Price:Get Latest Price
$30.00 - $60.00 / Pieces | 3 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 10 11 - 500 501 - 5000 >5000
Est. Time(days) 2 18 26 Negotiable
Customization:
Customized packaging (Min. Order: 3000 Pieces)
Customized logo (Min. Order: 200 Pieces)
Report Suspicious Activity
Overview
Quick Details
Model Number:
G1
Brand Name:
MINEW
Place of Origin:
Guangdong, China
Certification:
CE FCC RoHS BQB
Feature:
BLE and WiFi
Supports:
HTTP/MQTT
Operating temp.:
-25℃ to 65℃
Supply Ability
Supply Ability:
50000 Piece/Pieces per Week
Packaging & Delivery
Port
Shenzhen
Lead Time :
Quantity(Pieces) 1 - 10 11 - 500 501 - 5000 >5000
Est. Time(days) 2 18 26 To be negotiated
Video Description

Wireless iot hub router MQTT HTTP Supported BLE WiFi gateway bluetooth beacon data detector

Product Description


Description

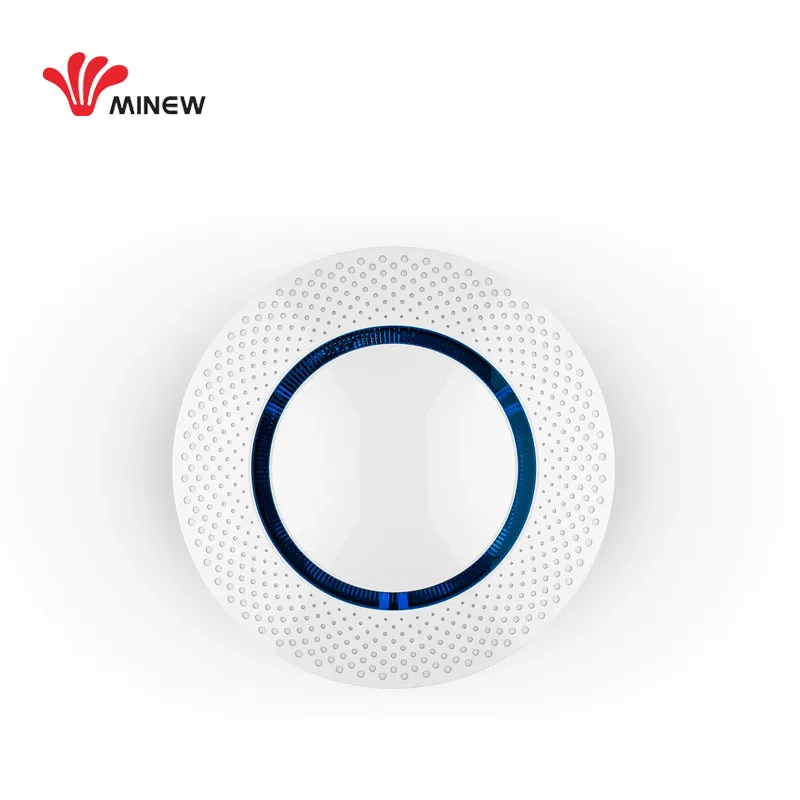

    1. 1. G1 is a Bluetooth 5.0 low energy (BLE) to Wi-Fi connectivity gateway without the uses of smartphones or apps.
    2. 2. The G1 gateway collects the data from iBeacon, Eddystone, BLE sensor and other BLE devices, and then sends to the local TCP server or remote cloud server by HTTP / MQTT / mbed (ARM) protocol over Wi-Fi / Ethernet / Cellular.
    3. 3. Easily to manage & track beacons and upload data through web UI/cloud server.

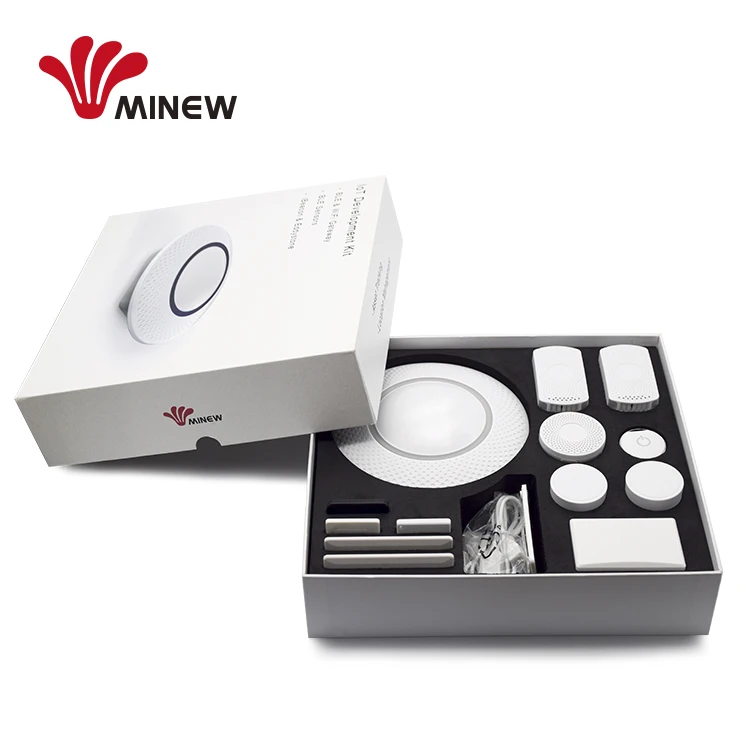

    4. 4. Smart  IoT development kit

Wi-Fi:

● Up to 150 Mbps PHY data rate
● With 3dBi flexible FPC antenna
● 100 meters range in open space
● 1T1R 2.4GHz frequency band
● IEEE 802.11b/g/n
● Web based UI for configuration
● Connects to the local server or remote cloud


General:


● Input: DC 5.0V, 1A, micro-USB
● Supports 802.3af PoE standard
● Supports firmware upgrade Over-the-Air
● Operating temperature: -25℃ to 65℃
● Reads multiple BLE devices in the same time
● Supports TCP/HTTP/MQTT/mbed(ARM)
● Built-in RTC and NTP support
● RGB LED string as the status indicator
● Based on OpenWrt 15.05


BLE:

● Bluetooth 5.0 hardware nRF52832
● With a power amplifier
● With 3dBi flexible FPC antenna
● 300 meters range in open space
● Rx sensitivity -108dBm
● Bi-directional (reads data / sends command)



Other:


● 10/100M Ethernet with PoE
● Optional Cellular (coming soon, Q4/2017)
● 3G WCDMA
● 4G LTE


Application

G1 BlE IoT gateway for beacons management & data uploading

● iBeacon / Eddystone / other BLE tag receiver
● BLE sensor reader / receiver
● Asset tracking
● Access control management
● Advertisement promotion
● Indoor location and position
● Industrial automation




Other products



I3 Robust Beacon

5years, 200meters

C7 Card beacon

3years, accelereometer option

E9 D-ear Beacon

3years, accelereometer option


Packing & Delivery
Details
Industrial Box
Master Carton
Quantities
1 pcs/box
20pcs/box
Size
30.5*11*7.5cm
32*23.5*40cm

For samples:

we would send samples via DHL Express within about 2 days after payment, then you would receive them in about 4 to 5 days.


For orders:

bulk orders usually take about 2 to 3 weeks after payment received.

Company Profile

Founded in 2007,Minew has been engaged in IoT (Internet of Things) field for years and is keeping updated

to the market demand all along.

We are an ISO9001:2008 certified manufacturer focusing on RF / Wireless products such as 2.4GHz BLE 4.0 related products.
We focus on designing and manufacturing many different high quality and low cost iBeacons hardware,offering one-stop services include:
1. Schematic design;
2. Mold design;
3. PCB layout;
4. Firmware design;
5. Production and assembling.
Warmly welcome the OEM and ODM projects

Certifications

We pass the  ISO9001 quality control system certification

Other certifications available: CE / FCC /  RoHS / BQB / IC / ATEX / RCM / Telec. etc

R&D center

50+ R&D Experts for :

Hardware design

Firmware /software design

Mechanical design

Mobile application design

Cloud platform design




OEM/ODM Service :


Minew is a professional turnkey manufacturer with the ability to bring your concepts and ideas into reliable solution.



We work with many startups and top-class corporations at all stages of design and manufacture. Our factory equips with quick response and flexible manufacturing system to support all different demands

Exhibition

Every year we will attend many exhibitions like CES, Cebit, MWC to exhibit our lastest technologies and new coming products

FAQ

1.How to order samples?

-You can contact us by sending an inquiry on Alibaba.

-You can pay the samples via Paypal/Alibaba Trade Assurance/TT, samples can supply from stock. you can receive the samples within 3-4 days after you pay it.



2.What service we will offer after sample order?

  The following technical data and documents will be provided.

  1.SDK     2. API    3. Demo APP     4. Configuration APP    5. Instructions



3.How long will it take for producing volume orders?

-If we have pcb in stock,the lead time is 2-3 weeks

-If there is not enough pcb in stock,the lead time is 3-4 weeks.



4.Can you customize the logo/mac address on the interface of this bluetooth ibeacon?

-Yes.



5.Can you make pre-configuration (pre-program the uuid,major,minor,etc)?

-Yes,we can make pre-configuration in our factory with free of charge.
