minew State of the art low power programmable AOA Mini bluetooth ibeacon nrf52840 BLE 5 long range modules provider
Hot sale products
Hot sale in
-
3 - 999 Pieces
$5.99
-
>=1000 Pieces
$4.29
- Supplier Type:
- ODM Original manufacturer
- Samples:
- Lead Time:
-
Quantity(Pieces) 1 - 100 101 - 1000 >1000 Est. Time(days) 3 15 Negotiable
- Customization:
-
Customized packaging (Min. Order: 10000 Pieces)Customized logo (Min. Order: 10000 Pieces)
Product Details
Company Profile
Overview
Quick Details
- Chipset:
-
nRF52840
- Model Number:
-
MS88SF21
- Application:
-
Internet of Things
- Brand Name:
-
Minew
- Place of Origin:
-
Guangdong, China
- Certification:
-
BQB FCC CE IC RCM TELEC WPC RoHS&Reach
- Dimension:
-
23.2 x 17.4 x 2.0 mm
- Sleep Consumption:
-
Less 1uA
- Antenna:
-
PCB
- Transmission Range:
-
10M-100M
- Bluetooth version:
-
5.0
- Sensitivity:
-
-96dBm
- Flash & RAM:
-
1 MB & 256KB
- GPIO:
-
20
- Features:
-
USB power supply/ support zigbee
Supply Ability
- Supply Ability:
- 30000 Piece/Pieces per Week
Packaging & Delivery
- Packaging Details
- 650pcs/Reel
All the reel are packed by Aluminum bag via vacuum.
- Port
- Shenzhen
- Lead Time :
-
Quantity(Pieces) 1 - 100 101 - 1000 >1000 Est. Time(days) 3 15 To be negotiated
Online Customization
Product Description

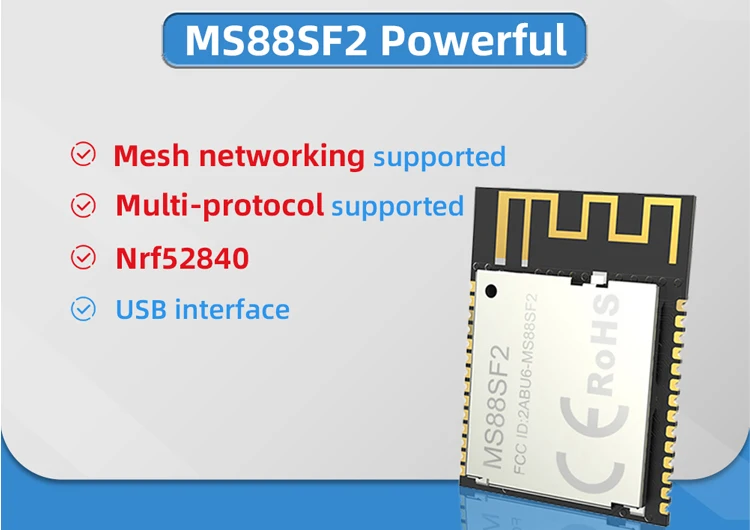

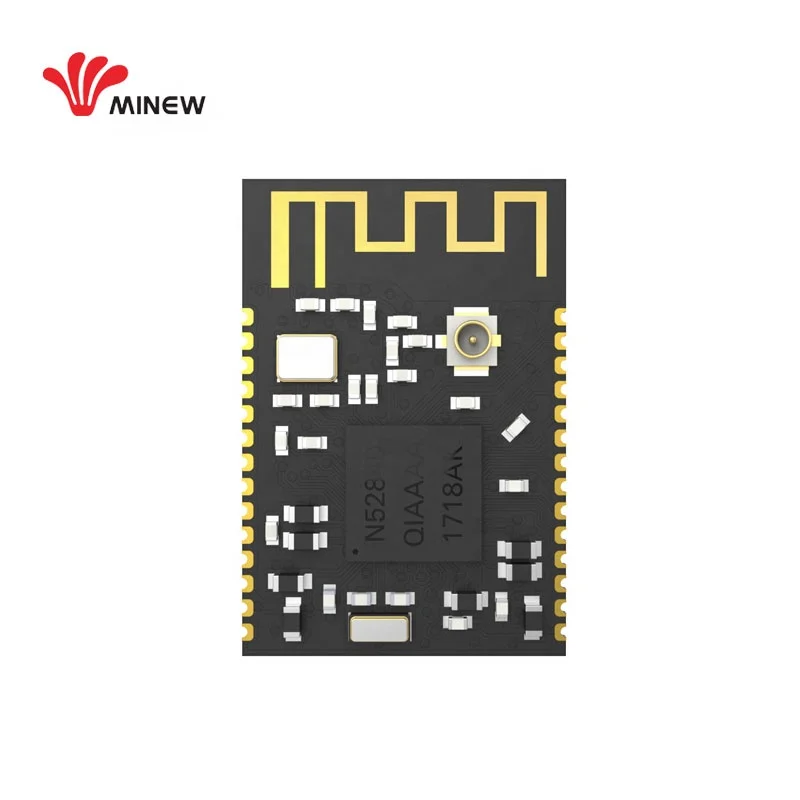

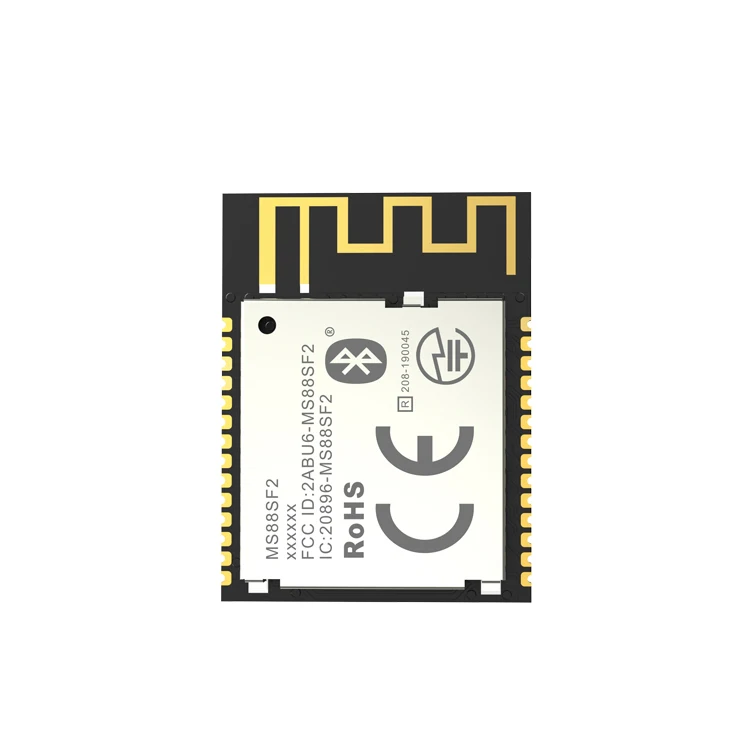

MS88SF2 Module
MS88SF2 is based on Nordic nRF52840 and it is a compact and very small size Bluetooth 5.0
module with the metal cover shield and compliance with IEEE 802.14.4 standard. Technically, MS88SF2 is advanced, higher flexibility, ultra-low power and multi-protocol SOM and it lowers the cost of building network nodes.
module with the metal cover shield and compliance with IEEE 802.14.4 standard. Technically, MS88SF2 is advanced, higher flexibility, ultra-low power and multi-protocol SOM and it lowers the cost of building network nodes.



Features

Frequency: | 2400 to 2483 MHz | |
Max. Output power: | +8dBm | |
Single power supply: | 1.8 – 3.9V | |
Range: | 10-100meters | |
Chip: | nRF52840 (Nordic) | |
GPIO Quantity: | 20 | |

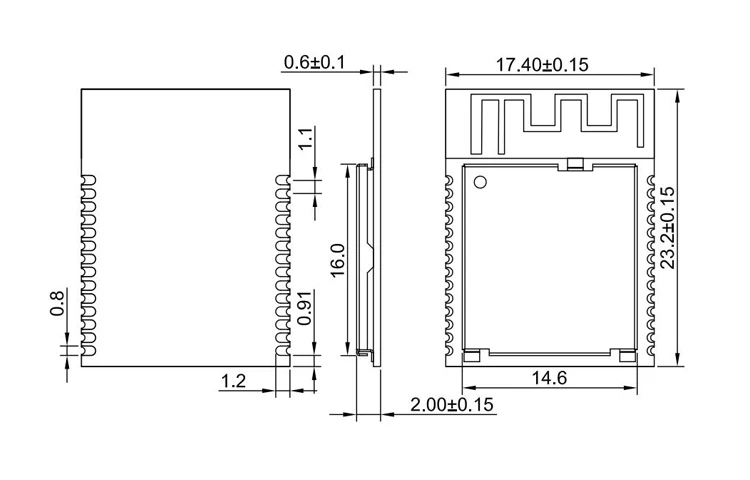

Module size: | 23.2 x 17.4 x 2.0 mm | |
Operating temperature range: | -25 to 85 degree Celsius | |
1MB Flash and 256kB RAM | ||
Supports USB data interface | ||
ARM Cortex-M4F processor | ||
Metal shielding with marking | ||
IEEE 802.15.4 with Thread and Zigbee support |

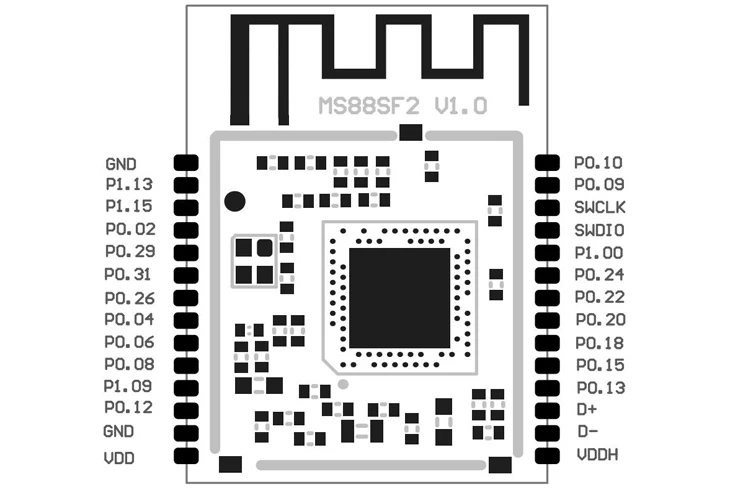

Pin description

The definition of GPIO can refer to Nordic chipset specification of nRF52840.
Application


Company profile









Certification

Minew module can save your money up to US$8000
Certification is really important to your project. If there have only one transmitter and antenna in your product, the product that installed with Minew's module can reference Minew's ID directly. In terms of certification part, Minew can save your money up to US$8000.
