minew bluethooth adapter ble to wifi gateway bridge indoor wireless cloud access point

FOB Reference Price:Get Latest Price
$30.00 - $60.00 / Piece | 1 Piece/Pieces (Min. Order)
Supplier Type:
ODM Original manufacturer
Samples:
Original manufacturer
$60.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Lead Time:
Quantity(Pieces) 1 - 10 11 - 100 >100
Est. Time(days) 7 15 Negotiable
Customization:
Customized logo (Min. Order: 200 Pieces)
Report Suspicious Activity
Overview
Quick Details
Chipset:
BLE5.0
Model Number:
G1
Application:
IoT solution
Brand Name:
Minew
Place of Origin:
China
Core tech:
BLE5.0/WiFi IEEE 802.11 b/g/n
Cover range:
300 meters
Protocols Supported:
TCP/HTTP/MQTT/mbed(ARM)
Wifi:
Up to 150 Mbps PHY data rate
Sever support:
AWS/Azure/ARM mBed
Selectable Sub Channels:
14 channels
Power supply:
Micro-USB / PoE
Input:
DC 5.0V, 1A, micro-USB
Light strip:
Indicator
Working Temperature:
: -25℃ to 65℃
Supply Ability
Supply Ability:
30000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
standard package
Port
shenzhen / hongkong
Lead Time :
Quantity(Pieces) 1 - 10 11 - 100 >100
Est. Time(days) 7 15 To be negotiated
Product Description

Hot selling bluetooth beacon receiver gateway

G1 is a Bluetooth low energy (BLE) to Wi-Fi connectivity gateway without the uses of smartphones or apps, consisting of ble module, wifi module and a color lamp ring on the top. It collects the data from iBeacon, Eddystone, BLE sensor and other BLE devices, and then sends to the local server or remote cloud server by HTTP / MQTT/ TCP protocol over Wi-Fi / Ethernet/external 3G/4G USB Dongle. Power supply by USB or Ethernet and can support Azure /AWS/ARM mbed IoT hub.
User Manual

USB/PoE power supply iot bluetooth lte enabled ble beacon 3g 4g LTE gateway G1 for iot devices

Newest version Minew G1 gateway is coming- with adding an external 3G/4G USB Dongle for your more option to internet.

1. Function: collects the data from iBeacon, Eddystone, BLE sensor and other BLE devices, and then sends to the local server or remote cloud server by HTTP / MQTT/ TCP protocol over Wi-Fi / Ethernet&external 3G/4G USB Dongle.2. Installation: can be fixed by sticker or screw thread.
3. Configuration: G1 BLE & WiFi gateway can be configured throught a simple WEB configuration interface or configuration APP in PC(Batch Configuration Tool).
4. Advantage: Data Saved in TF Data Card or Udisk, even if disconnected & Firmware Upgraded by OTA
5. Application:
* iBeacon / Eddystone / other BLE tag receiver
* BLE sensor reader / receiver
* Asset tracking
* Access control management
* Advertisement promotion
* Indoor location and position
* Industrial automation
Features

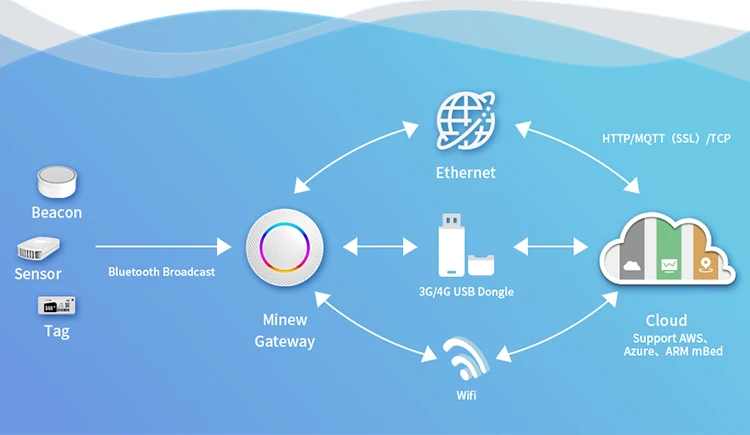

Application of G1 BLE &Wifi gateway:

G1 Gateway can manage the beacon, receive Bluetooth signal and send to cloud server.

General:
● Input: DC 5.0V, 1A, micro-USB
● Supports 802.3af PoE standard
Supports firmware upgrade Over-the-Air
● Operating temperature: -25℃ to 65℃
● Reads multiple BLE devices in the same time
● Supports HTTP(support SSL/TLS)/MQTT(support SSL/TLS and Proxy)/TCP
● Built-in RTC and NTP support
● RGB LED string as the status indicator
● Based on OpenWrt 15.05

BLE:
● Bluetooth 5.0 hardware nRF52832
● With a power amplifier
● With 3dBi flexible FPC antenna
● 300 meters range in open space
● Rx sensitivity -108dBm
● Bi-directional (reads data / sends command)

WiFi:
● Up to 150 Mbps PHY data rate                                        ● With 3dBi flexible FPC antenna
● 100 meters range in open space                                     ● 1T1R 2.4GHz frequency band
● IEEE 802.11b/g/n                                                               ● Web based UI for configuration
● Connects to the local server or remote cloud

Specification
Color
White
Size
150x150x36mm
Net Weight
180g
Accessory
1x USB cable, mental fixing and screws
Power supply (Vcc)
DC 5.0 (+/- 5%) Max. 5.5 Volts
Storage temperature
-40℃ to 85℃
Humidity
Max 95%, Non condensing, relative humidity
Our Company

Founded in 2007,Minew has been engaged in IoT (Internet of Things) field for years and is keeping updated to the market demand all along.We are an ISO9001:2008 certified manufacturer focusing on RF / Wireless products such as 2.4GHz BLE 4.0 related products.We focus on designing and manufacturing many different high quality and low cost iBeacons hardware , offering one-stop services include:


1. Schematic design;
2. Mold design;
3. PCB layout;
4. Firmware design;
5. Production and assembling.
Warmly welcome the OEM and ODM projects.

Certifications

Bluetooth 5.0 iBeacon Eddystone Reader/ BLE & WiFi Gateway

1.According to our customers requirements, we are willing to handle shipment for our customers, and the shipment fee is needed in this case.Fast Express like DHL,UPS, TNT, FedEx are all available here.


2. If our customers have their own Express account, freight forwarder in China,we are happy to contact their Express people or freight forwarder to pick up products from our factory.

FAQ

Do you provide the technical support to the developers?
Re: SURE. The following technical data and documents will be provided to developers.
1. SDK 2. Firmwork 3. Demo APP 4. Configuration APP 5. Instructions

Can I change the password?
Re: Yes, you can use configuration APP to change password by yourself.

Do you have SDK or the source code?
Re: Yes, we will provide you after sample was arrived.

Does MiniBeacon comply with iBeacon standard?
Re: Yes,MiniBeacon has been licensed by ibeacon stamdard program with contact No.iBC-14-00582.
